1814988 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

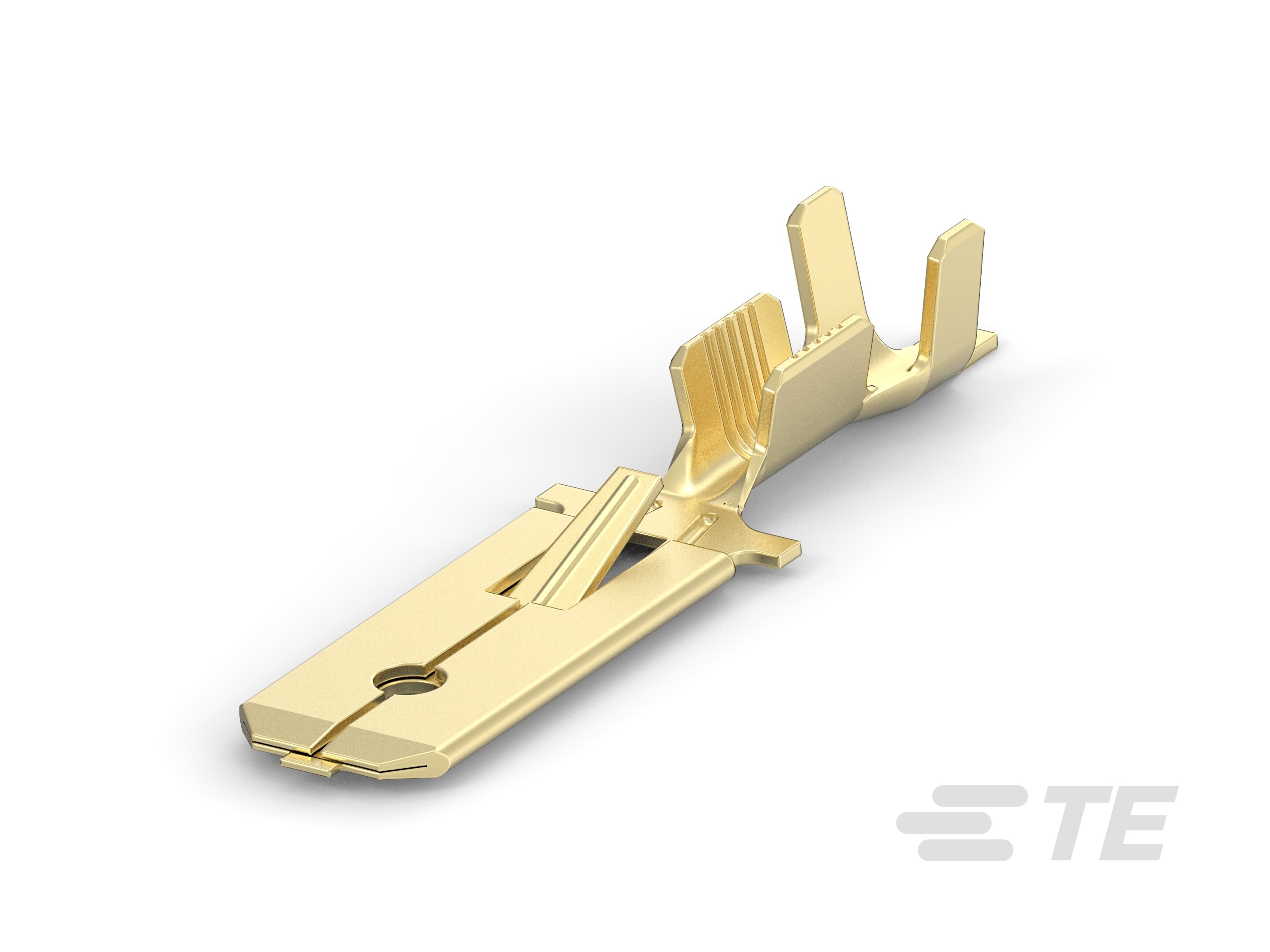

.250SERIES FASTIN-FASTON TAB AMPLIVAR
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Termination | Tab Length | Tab Length | Tab Thickness | Tab Thickness | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] | Mounting Type | Terminal Type | Tab Width [x] | Tab Width [x] | Contact Material | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.087 " | 0.13 " | 2.21 mm | 3.3 mm | Crimp | 0.61 " | 15.5 mm | 0.81 mm | 0.032 in | Non-Insulated | 15 AWG | 18 AWG | 1.075 in | 27.31 mm | Free Hanging (In-Line) | Standard | 6.35 mm | 0.25 in | Brass | Male |
