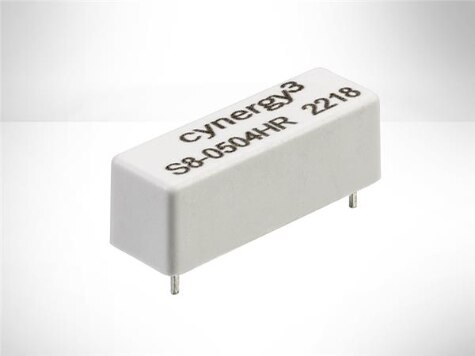

S8-HR Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SPST N/O 5KV ISOLATION 1000V 24V
| Part | Switching Voltage [Max] | Contact Form | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Contact Rating (Current) | Mounting Type | Must Release Voltage | Contact Material | Release Time | Operate Time | Coil Voltage | Coil Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 1000 VDC | SPST-NO (1 Form A) | 15.5 mA | 85 °C | -40 C | 19 VDC | 1 A | Through Hole | 3 VDC | Rhodium (Rh) | 0.5 ms | 1 ms | 24 VDC | Non Latching | PC Pin |
Sensata-Crydom | 350 VDC | SPST-NO (1 Form A) | 41.7 mA | 85 °C | -40 C | 4 VDC | 1 A | Through Hole | 1 VDC | Rhodium (Rh) | 0.5 ms | 1 ms | 5 VDC | Non Latching | PC Pin |
 Sensata-Crydom | 350 VDC | SPST-NO (1 Form A) | 16 mA | 85 °C | -40 C | 9.6 VDC | 1 A | Through Hole | 2 VDC | Rhodium (Rh) | 0.5 ms | 1 ms | 12 VDC | Non Latching | PC Pin |
Sensata-Crydom | 1000 VDC | SPST-NO (1 Form A) | 16 mA | 85 °C | -40 C | 9.6 VDC | 1 A | Through Hole | 2 VDC | Rhodium (Rh) | 0.5 ms | 1 ms | 12 VDC | Non Latching | PC Pin |
Sensata-Crydom | 1000 VDC | SPST-NO (1 Form A) | 41.7 mA | 85 °C | -40 C | 4 VDC | 1 A | Through Hole | 1 VDC | Rhodium (Rh) | 0.5 ms | 1 ms | 5 VDC | Non Latching | PC Pin |
Sensata-Crydom | 350 VDC | SPST-NO (1 Form A) | 15.5 mA | 85 °C | -40 C | 19 VDC | 1 A | Through Hole | 3 VDC | Rhodium (Rh) | 0.5 ms | 1 ms | 24 VDC | Non Latching | PC Pin |
