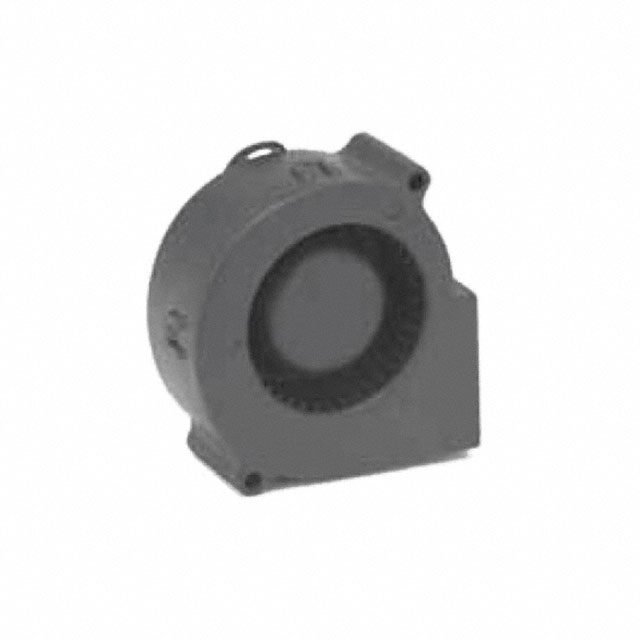

ODB7530 Series
Manufacturer: ORION FANS
Beta
⌘K

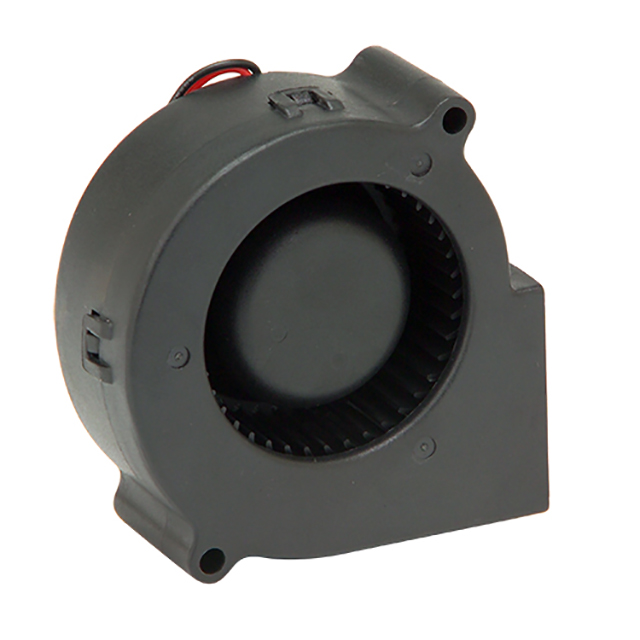

FAN BLOWER 75X30MM 12VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Noise | Width [y] | Features | Termination | RPM | Fan Type | Voltage - Rated | Power (Watts) | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 7 V | 13.2 VDC | 360 mA | Polybutylene Terephthalate (PBT) | 70000 Hrs | Ball | 70 °C | -10 °C | 139.5 Pa | 0.56 in H2O | 41.7 dB(A) | 30 mm | Locked Rotor Sensor | 3 Wire Leads | 3400 RPM | Blower | 12 VDC | 4.32 W | Square/Rounded | 75 mm | 75 mm | 13.8 CFM | 0.386 mł/min |
 ORION FANS | 7 V | 13.2 VDC | 360 mA | Polybutylene Terephthalate (PBT) | Ball | 70 °C | -10 °C | 139.5 Pa | 0.56 in H2O | 41.7 dB(A) | 30 mm | 2 Wire Leads | 3400 RPM | Blower | 12 VDC | 4.32 W | Square/Rounded | 75 mm | 75 mm | 13.8 CFM | 0.386 mł/min | ||
ORION FANS | 17 VDC | 26.4 VDC | 0.2 A | Polybutylene Terephthalate (PBT) | Ball | 70 °C | -10 °C | 139.5 Pa | 0.56 in H2O | 41.7 dB(A) | 30 mm | 2 Wire Leads | 3400 RPM | Blower | 24 VDC | 4.8 W | Square/Rounded | 75 mm | 75 mm | 13.8 CFM | 0.386 mł/min |
