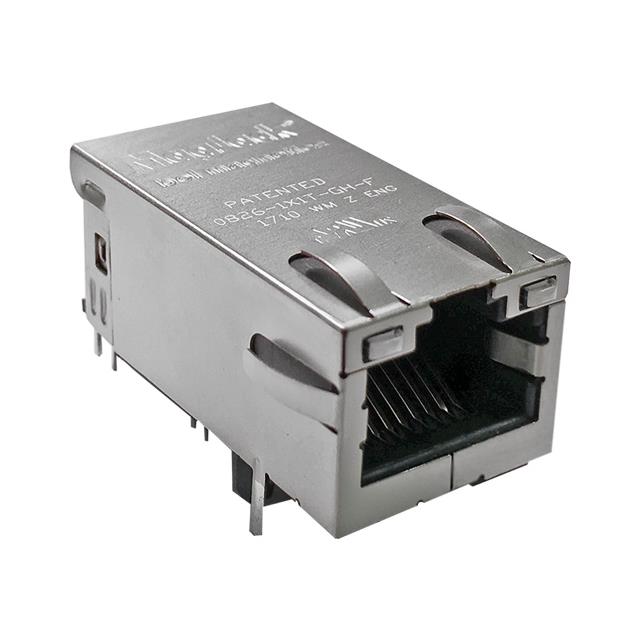

1-1840727 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS
| Part | Housing Material | Applications | Shield Material | Tab Direction | Termination | Height Above Board [z] | Height Above Board [z] | Contact Material | Contact Finish | Orientation | Mounting Type | Number of Rows | LED Color | Contact Finish Thickness | Contact Finish Thickness | Shielding | Number of Cores per Jack | Features | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Thermoplastic | 10/100/1000 Base-T AutoMDIX | Brass | Up | Solder | 0.536 in | 13.61 mm | Phosphor Bronze | Gold | 90 ° | Through Hole | 1 | Green Orange Yellow | 50 µin | 1.27 µm | EMI Finger Shielded | 12 | Board Guide Decoupling Capacitance | RJ45 | 70 °C | 0 °C | 1 |
Bel Fuse Inc. | 10/100/1000 Base-T AutoMDIX | Up | Solder | 0.536 in | 13.61 mm | Phosphor Bronze | Gold | 90 ° | Through Hole | 1 | Green Orange Yellow | EMI Finger Shielded | 12 | Board Guide Decoupling Capacitance | RJ45 | 70 °C | 0 °C | 1 |
