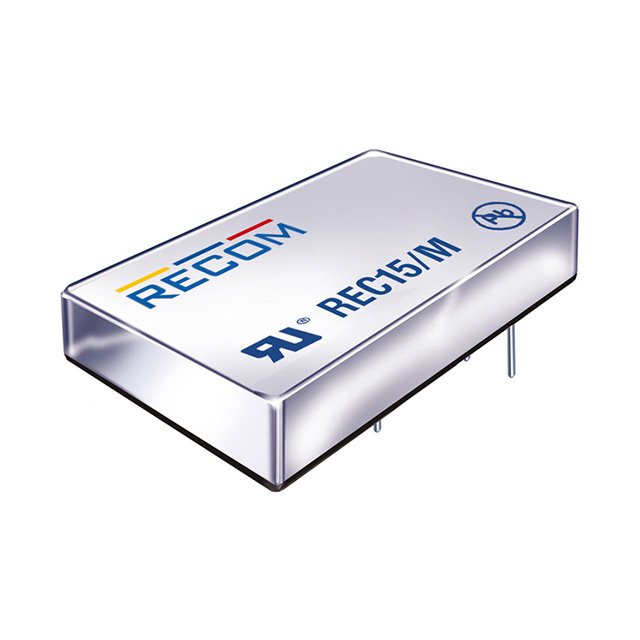

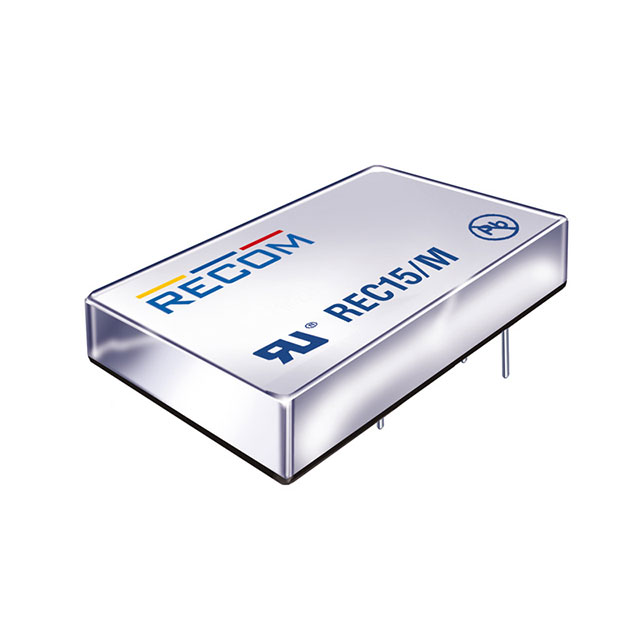

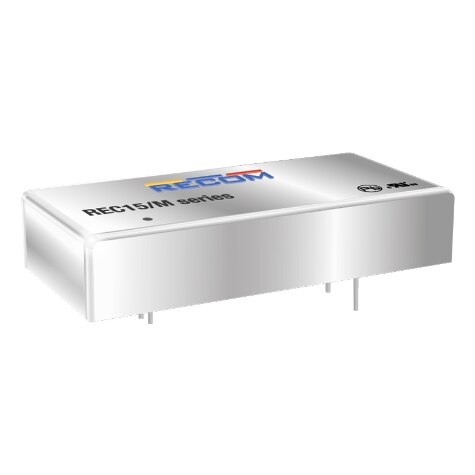

REC15-S_D(Z)/M Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W 18-36VIN 12VOUT 1.25A
| Part | Size / Dimension | Applications | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Voltage - Output 1 | Type | Package / Case | Mounting Type | Features | Voltage - Input (Max) [Max] | Voltage - Isolation | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency | Current - Output (Max) | Voltage - Output 2 | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 °C | 100 °C | 15 W | 12 V | Isolated Module | 5-DIP Module | Through Hole | SCP | 36 V | 2000 V | 1.25 A | 18 V | 86 % | |||
 Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 2 | -40 °C | 100 °C | 15 W | 5 V | Isolated Module | 6-DIP Module | Through Hole | SCP | 36 V | 2000 V | 18 V | 83 % | 1.5 A | -5 V | ||
Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 °C | 100 °C | 10 W | 3.4 V | Isolated Module | 5-DIP Module | Through Hole | SCP | 18 V | 3000 V | 3 A | 9 V | 85 % | |||
Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 C | 71 °C | 15 W | 12 V | Isolated Module | 6-DIP Module | Through Hole | OCP Remote On/Off SCP UVLO | 36 V | 3000 V | 1.25 A | 18 V | 86 % | Active High Enable | ||
Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 2 | -40 °C | 90 °C | 15 W | 5 V | Isolated Module | 6-DIP Module | Through Hole | SCP | 75 V | 2000 V | 18 V | 83 % | 1.5 A | -5 V | ||
 Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 C | 65 °C | 15 W | 3.4 V | Isolated Module | 6-DIP Module | Through Hole | OCP Remote On/Off SCP UVLO | 75 V | 3000 V | 3 A | 18 V | 85 % | Active High Enable | ||
Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 C | 65 °C | 15 W | 12 V | Isolated Module | 6-DIP Module | Through Hole | OCP Remote On/Off SCP UVLO | 75 V | 3000 V | 1.25 A | 18 V | 86 % | Active High Enable | ||
 Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 2 | -40 C | 65 °C | 15 W | 15 V | Isolated Module | 6-DIP Module | Through Hole | OCP Remote On/Off SCP UVLO | 75 V | 3000 V | 18 V | 86 % | 500 mA | -15 V | Active High Enable | |
Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 C | 71 °C | 15 W | 5.1 V | Isolated Module | 6-DIP Module | Through Hole | OCP Remote On/Off SCP UVLO | 18 V | 2000 V | 3 A | 9 V | 87 % | Active High Enable | ||
Recom Power | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ITE (Commercial) Medical | 1 | -40 C | 71 °C | 15 W | 3.4 V | Isolated Module | 6-DIP Module | Through Hole | OCP Remote On/Off SCP UVLO | 36 V | 3000 V | 3 A | 18 V | 85 % | Active High Enable |
