N3429 Series

Catalog

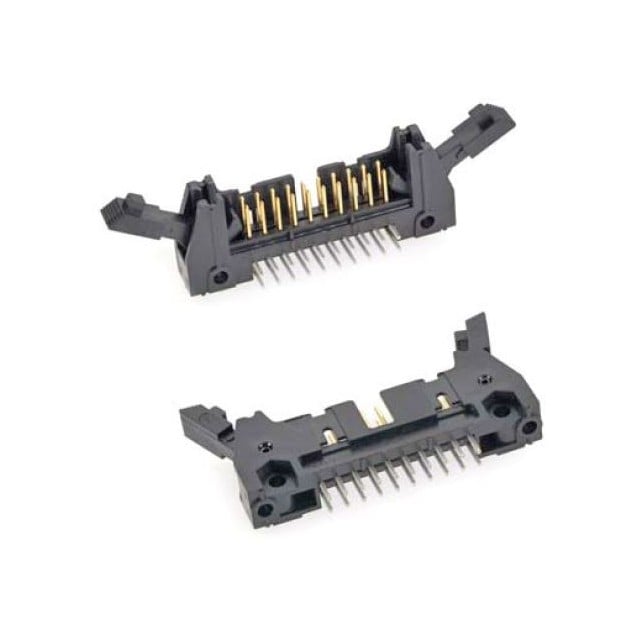

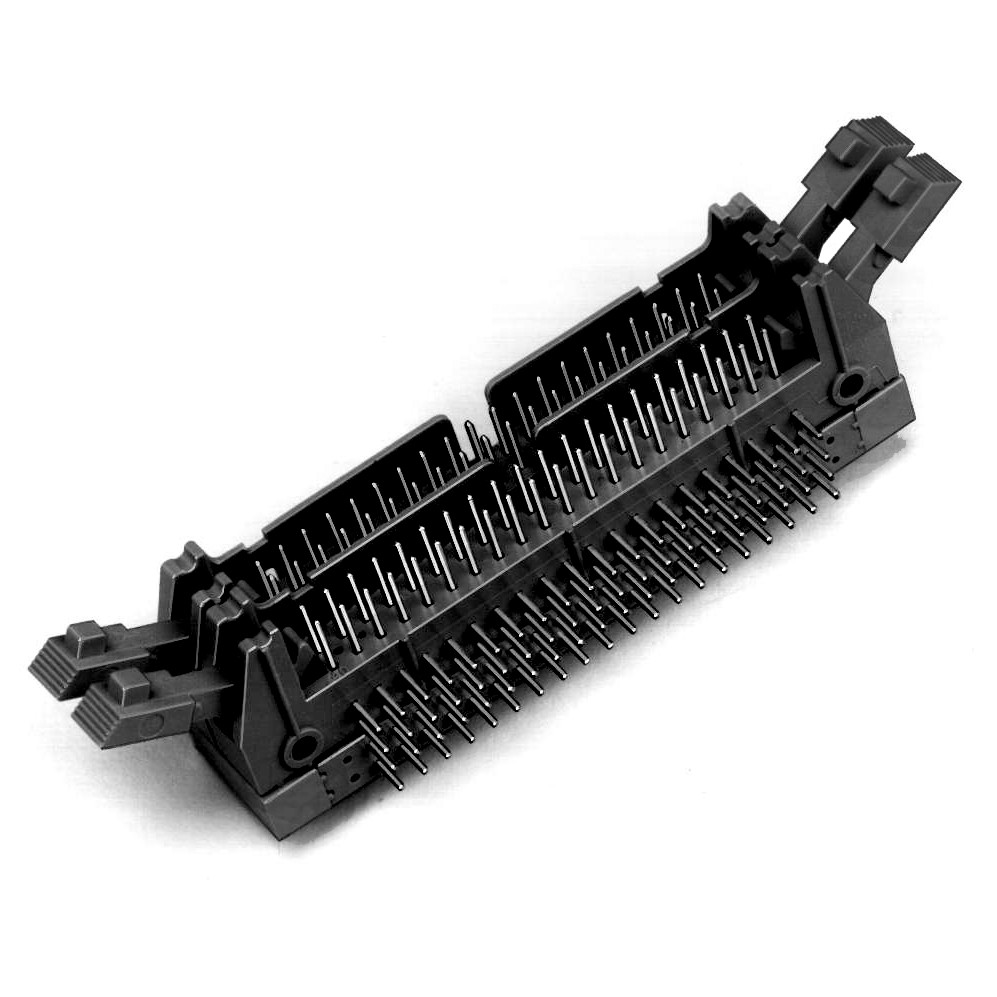

CONN EJECTOR HEADER HDR 26 POS 2.54MM SOLDER ST THRU-HOLE BOX

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Material	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Shrouding	Material Flammability Rating	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Contact Shape	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Material	Contact Finish - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
3M Electronic Specialty N3429-6302	200 µin	5.08 µm	1.75 A	17.27 mm	0.68 in	0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	0.652 in	16.56 mm	Shrouded - 4 Wall	UL94 V-0	Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Copper Alloy	Tin-Lead	Gold	-55 C	105 ░C
3M Electronic Specialty N3429-2002RB	200 µin	5.08 µm	1.75 A			0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	0.652 in	16.56 mm	Shrouded - 3 Wall	UL94 V-0	Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Push-Pull	Copper Alloy	Tin	Gold	-55 C	105 ░C	0.685 in	17.4 mm
3M Electronic Specialty N3429-CES80128
3M Electronic Specialty N3429-D202RB	200 µin	5.08 µm				0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2			Shrouded - 3 Wall	UL94 V-0	Right Angle Through Hole	Header Stackable (2)	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Copper Alloy	Tin	Gold	-55 C	105 ░C	16.76 mm		0.66 in
3M Electronic Specialty N3429-6202	200 µin	5.08 µm	1.75 A	17.27 mm	0.68 in	0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	0.652 in	16.56 mm	Shrouded - 4 Wall	UL94 V-0	Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Copper Alloy	Tin-Lead	Gold	-55 C	105 ░C
3M Electronic Specialty N3429-2202RB	200 µin	5.08 µm	1.75 A	17.27 mm	0.68 in	0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	0.652 in	16.56 mm	Shrouded - 3 Wall	UL94 V-0	Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Copper Alloy	Tin	Gold	-55 C	105 ░C
3M Electronic Specialty N3429-5003RB	200 µin	5.08 µm	1.75 A	8.64 mm	0.34 in	0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2			Shrouded - 4 Wall	UL94 V-0	Right Angle Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin			All	26	0.1 in	2.54 mm	Push-Pull	Copper Alloy	Tin	Gold	-55 C	105 ░C				3.94 mm	0.155 "
3M Electronic Specialty N3429-2302RB	200 µin	5.08 µm	1.75 A	17.27 mm	0.68 in	0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	0.652 in	16.56 mm	Shrouded - 3 Wall	UL94 V-0	Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Copper Alloy	Tin	Gold	-55 C	105 ░C
3M Electronic Specialty N3429-1002RB	200 µin	5.08 µm	1.75 A			0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2			Shrouded - 3 Wall	UL94 V-0	Right Angle Through Hole	Header	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Push-Pull	Copper Alloy	Tin	Gold	-55 C	105 ░C	7.87 mm		0.31 in
3M Electronic Specialty N3429-L302RB	200 µin	5.08 µm				0.76 Ám	30 Áin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2			Shrouded - 4 Wall	UL94 V-0	Right Angle Through Hole	Header Stackable (2)	0.1 "	2.54 mm	Board to Board Cable	0.24 in	6.1 mm	Solder	Square	Male Pin	0.112 in	2.84 mm	All	26	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Copper Alloy	Tin	Gold	-55 C	105 ░C	16.76 mm		0.66 in
