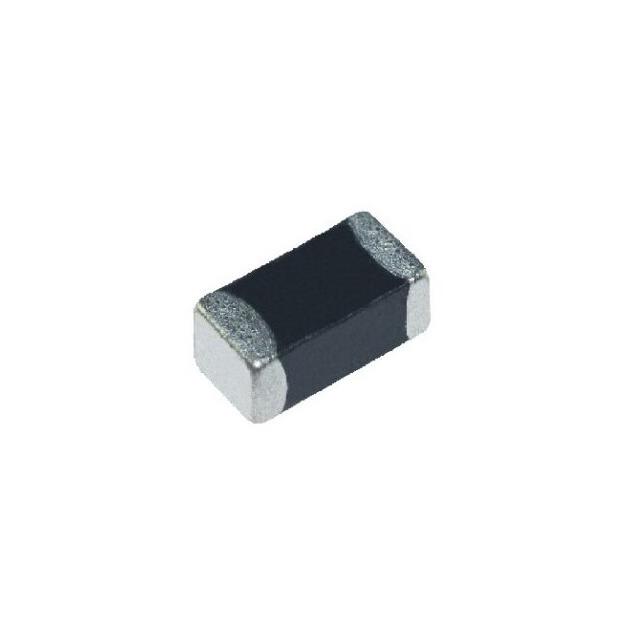

AFBC-Q0805 Series
Manufacturer: Abracon LLC
Beta
⌘K
FERRITE BEADS BEAD 300OHM 0.7A 300MOHM
| Part | Impedance @ Frequency | Features | DC Resistance (DCR) (Max) [Max] | Height (Max) [z] | Height (Max) [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Lines | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Current Rating (Max) [Max] | Mounting Type | Ratings | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 300 Ohms | Automotive | 300 mOhm | 1.05 mm | 0.041 in | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 1 | -55 C | 150 °C | 0805 | 700 mA | Surface Mount | AEC-Q200 | |
Abracon LLC | 2 kOhms | Automotive | 1.05 mm | 0.041 in | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 1 | -55 C | 150 °C | 0805 | 250 mA | Surface Mount | AEC-Q200 | 600 mOhm |
