947 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

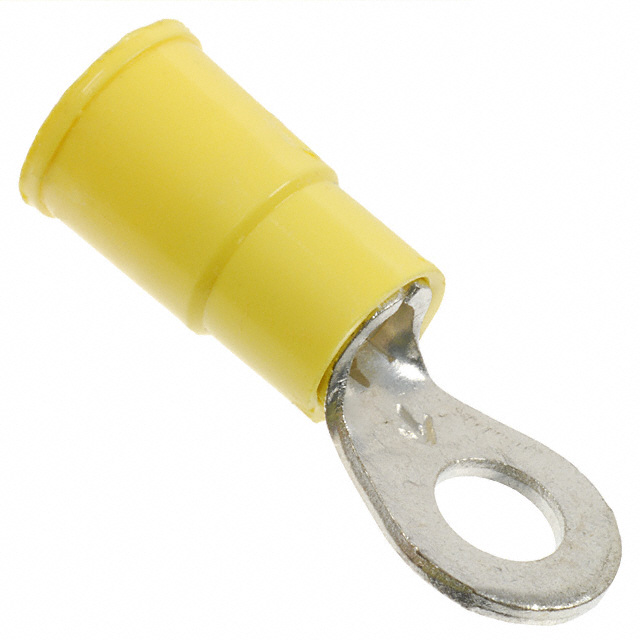

RING TONGUE TERMINAL, M5, #10, 10 AWG, HIGHLAND SERIES, YELLOW
| Part | Material - Insulation | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Mounting Type | Contact Finish | Insulation | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Contact Material | Thickness | Thickness | Color | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Vinyl | 6.35 mm | 0.25 in | Free Hanging (In-Line) | Tin | Insulated | Crimp | 10 AWG | 12 AWG | 9.65 mm | 0.38 in | Circular | Copper ETP | 0.04 in | 1.02 mm | Yellow | 10 Stud | 26.16 mm | 1.03 in |
