IAUC100 Series

Manufacturer: INFINEON

Catalog

IAUC100N04S6L020 IS AN AUTOMOTIVE MOSFET OFFERING 40V, N-CH, 2 MΩ MAX, SSO8 (5X6), OPTIMOS™-6 FOR HIGH EFFICIENCY AND PERFORMANCE.

Part	Package / Case	Vgs (Max)	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Grade	Supplier Device Package	FET Type	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Rds On (Max) @ Id, Vgs	Technology	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs
INFINEON IAUC100N04S6L020ATMA1	8-PowerTDFN	16 V	2 V	46 nC	100 A	40 V	2744 pF	Surface Mount	75 W	4.5 V 10 V	Automotive	PG-TDSON-8	N-Channel	AEC-Q101	175 °C	-55 °C	2.04 mOhm	MOSFET (Metal Oxide)
INFINEON IAUC100N04S6L025ATMA1	8-PowerTDFN	16 V	2 V	34 nC	100 A	40 V		Surface Mount	62 W	4.5 V 10 V	Automotive	PG-TDSON-8	N-Channel	AEC-Q101	175 °C	-55 °C	2.56 mOhm	MOSFET (Metal Oxide)	2019 pF

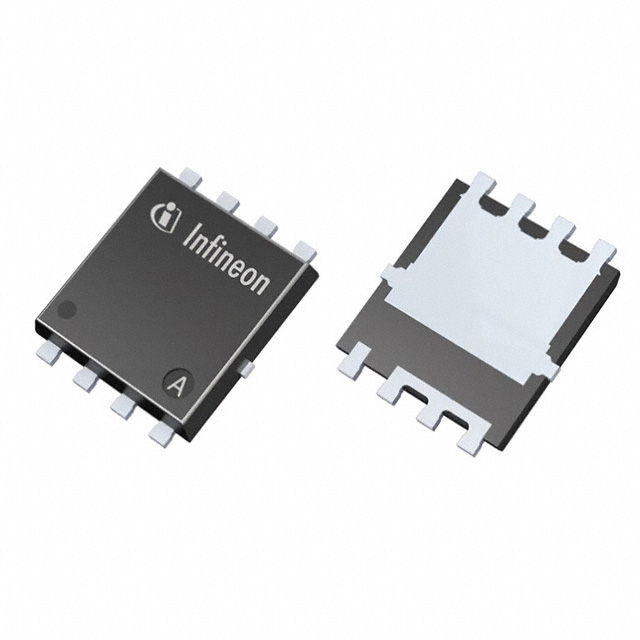

INFINEON IAUC100N10S5L040ATMA1	8-PowerTDFN	20 V	2 V	78 nC	100 A	100 V		Surface Mount	167 W	4.5 V 10 V	Automotive	PG-TDSON-8-34	N-Channel	AEC-Q101	175 °C	-55 °C		MOSFET (Metal Oxide)	5200 pF	4 mOhm
INFINEON IAUC100N04S6L014ATMA1	8-PowerTDFN	16 V	2 V	65 nC	100 A	40 V		Surface Mount	100 W	4.5 V 10 V	Automotive	PG-TDSON-8	N-Channel	AEC-Q101	175 °C	-55 °C	1.4 mOhm	MOSFET (Metal Oxide)
INFINEON IAUC100N04S6N028ATMA1	8-PowerTDFN	20 V	3 V	29 nC	100 A	40 V	1781 pF	Surface Mount	62 W	7 V 10 V	Automotive	PG-TDSON-8	N-Channel	AEC-Q101	175 °C	-55 °C	2.86 mOhm	MOSFET (Metal Oxide)
INFINEON IAUC100N10S5N040ATMA1	8-PowerTDFN	20 V	3.8 V	78 nC	100 A	100 V		Surface Mount	167 W	6 V 10 V	Automotive	PG-TDSON-8-34	N-Channel	AEC-Q101	175 °C	-55 °C		MOSFET (Metal Oxide)	5200 pF	4 mOhm
INFINEON IAUC100N04S6N022ATMA1	8-PowerTDFN	20 V	3 V		100 A	40 V		Surface Mount	75 W	7 V 10 V	Automotive	PG-TDSON-8	N-Channel	AEC-Q101	175 °C	-55 °C	2.26 mOhm	MOSFET (Metal Oxide)	2421 pF		39 nC
INFINEON IAUC100N08S5N043ATMA1	8-PowerTDFN	20 V	3.8 V		100 A	80 V		Surface Mount	125 W	6 V 10 V	Automotive	PG-TDSON-8-34	N-Channel	AEC-Q101	175 °C	-55 °C		MOSFET (Metal Oxide)	3860 pF	4 mOhm	56 nC
INFINEON IAUC100N04S6N015ATMA1	8-PowerTDFN	20 V	3 V	55 nC	100 A	40 V	3470 pF	Surface Mount	100 W	7 V 10 V	Automotive	PG-TDSON-8	N-Channel	AEC-Q101	175 °C	-55 °C	1.55 mOhm	MOSFET (Metal Oxide)
