747252 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

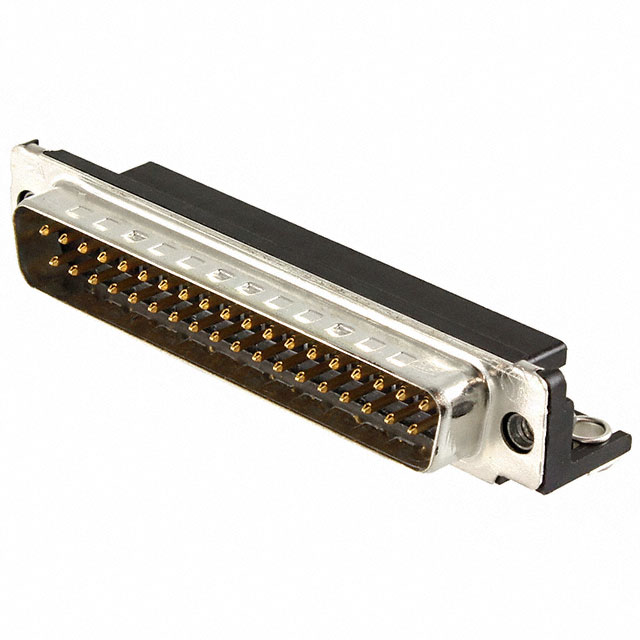

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, SOLDER, DC, AMPLIMITE HD-20 SERIES, CARBON STEEL BODY
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Termination | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Number of Rows [custom] | Connector Style | Contact Type | Backset Spacing | Backset Spacing | Features | Contact Finish | Mounting Type | Number of Positions | Flange Feature | Flange Feature | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | Black | -55 C | 105 ░C | 125 VDC | Solder | UL94 V-0 | 4 | DC C | Plug Male Pins | 2 | D-Sub | Signal | 8.08 mm | 0.318 " | Ground Strap Grounding Indents | Gold | Right Angle Through Hole | 37 | Housing/Shell | 4-40 | 6 A |
