MSD7342 Series

Manufacturer: Coilcraft

Catalog

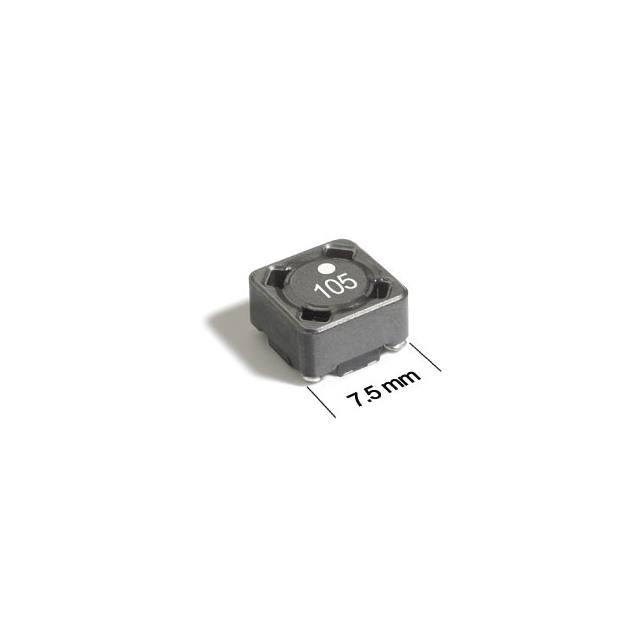

COUPLED INDUCTORS 5.6UH SHLD 20% 2.22A 63MOHMS AECQ2

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	DC Resistance (DCR) (Max)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max) [Max]	Inductance @ Frequency	Mounting Type	Number of Lines	Height (Max) [z]	Height (Max) [z]	Package / Case	Frequency - Self Resonant	Material - Core	Shielding	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Current - Saturation (Isat)	Inductance	Tolerance	DC Resistance (DCR)	Current Rating (Amps)	DC Resistance (DCR) (Max) [Max]
Coilcraft MSD7342-562MLC	85 °C	-40 C	AEC-Q200	63 mOhm	7.5 mm	0.295 "	0.295 in	7.5 mm	2.22 A	5.6 µH	Surface Mount	2	0.181 in	4.6 mm	Nonstandard
Coilcraft MSD7342-104MLC	85 °C	-40 C	AEC-Q200		7.5 mm	0.295 "	0.295 in	7.5 mm	630 mA	100 µH	Surface Mount	2	0.181 in	4.6 mm	Nonstandard	5.5 MHz	Ferrite	Shielded	Drum Core	4.6 mm	0.181 in	100 kHz	800 mA	100 µH	20 %	770 mOhm	0.63 A	770 mOhm
Coilcraft MSD7342-124MLC	85 °C	-40 C	AEC-Q200	1.03 Ohm	7.5 mm	0.295 "	0.295 in	7.5 mm	550 mA	100 kHz 120 µH	Surface Mount	2	0.181 in	4.6 mm	Nonstandard
