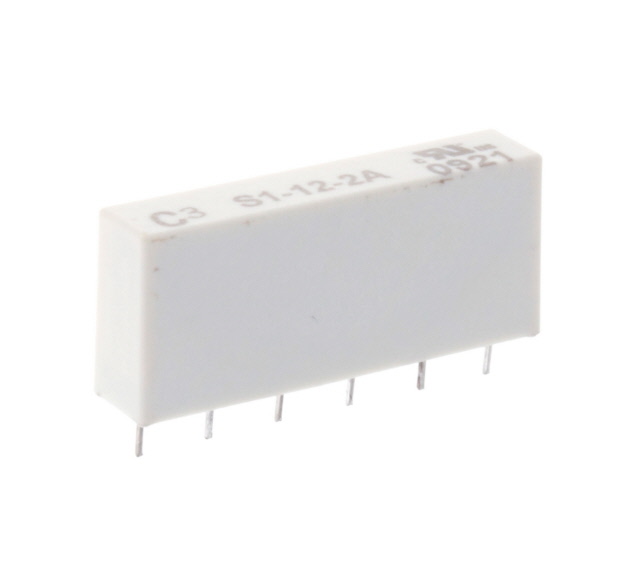

S1-12 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
RELAY REED 1 N/C 1.5KV 12V
| Part | Coil Resistance | Must Release Voltage | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Coil Voltage | Coil Type | Mounting Type | Contact Rating (Current) | Contact Form | Must Operate Voltage | Switching Voltage [Max] | Coil Current | Termination Style | Release Time | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 2 kOhms | 1.2 VDC | Rhodium (Rh) | 85 °C | -40 C | Diode | 12 VDC | Non Latching | Through Hole | 0.5 A | SPST-NC (1 Form B) | 9 VDC | 1000 VDC | 6 mA | PC Pin | ||
Sensata-Crydom | 780 Ohms | 1.2 VDC | Rhodium (Rh) | 85 °C | -40 C | EMI Shielded | 12 VDC | Non Latching | Through Hole | 0.5 A | SPST-NO (1 Form A) x 2 | 9 VDC | 1000 VDC | 15.4 mA | PC Pin | 0.3 ms | 750 µs |
 Sensata-Crydom | 780 Ohms | 1.2 VDC | Rhodium (Rh) | 85 °C | -40 C | 12 VDC | Non Latching | Through Hole | 0.5 A | SPST-NO (1 Form A) x 2 | 9 VDC | 1000 VDC | 15.4 mA | PC Pin | 0.3 ms | 750 µs | |
 Sensata-Crydom | 2 kOhms | 1.2 VDC | Rhodium (Rh) | 85 °C | -40 C | 12 VDC | Non Latching | Through Hole | 0.5 A | SPST-NC (1 Form B) | 9 VDC | 1000 VDC | 6 mA | PC Pin |
