Power Inductors - SMD Line Inductors for RECOM Power Supply
Power Inductors - SMD Line Inductors for RECOM Power Supply
| Part | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Shielding | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Type | Current - Saturation (Isat) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

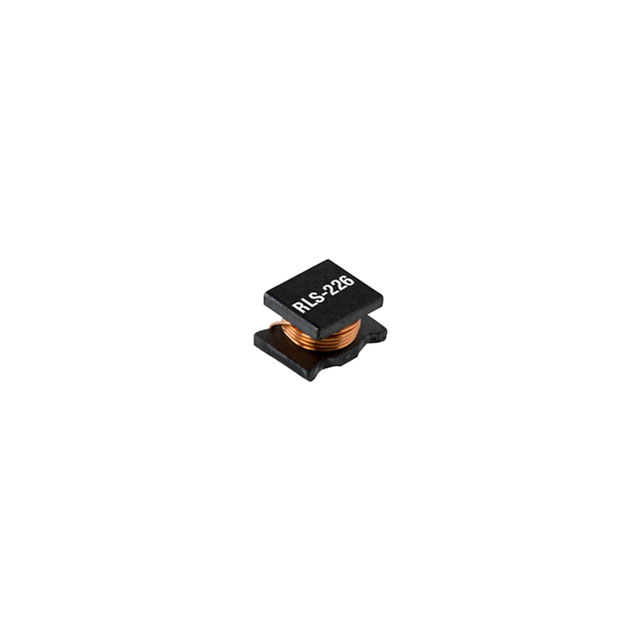

 Recom Power | 0.63 A | 0.122 in | 3.1 mm | 22 µH | 700 mOhm | 125 °C | -40 C | 100 kHz | Unshielded | 1812 (4532 Metric) | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | Surface Mount | Wirewound | 1 A | 10 % |
 Recom Power | 0.63 A | 0.122 in | 3.1 mm | 22 µH | 700 mOhm | 125 °C | -40 C | 100 kHz | Unshielded | 1812 (4532 Metric) | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | Surface Mount | Wirewound | 1 A | 10 % |
