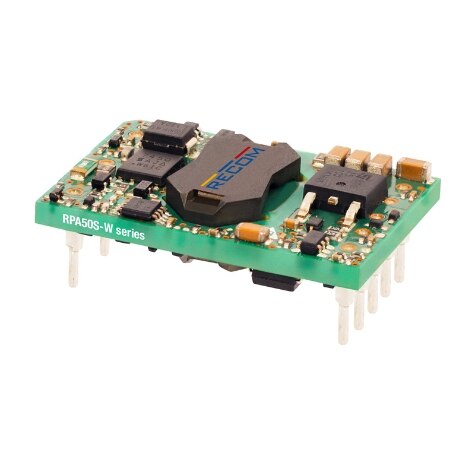

RPA50S-W Series

Isolated DC/DC Converters - Through Hole 50W 18-75Vin 3.3Vout 15A

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 50W 18-75Vin 3.3Vout 15A

Catalog

Isolated DC/DC Converters - Through Hole 50W 18-75Vin 3.3Vout 15A

Part	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Isolation	Applications	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Number of Outputs	Type
Recom Power RPA50S-483.3SW/P	18 V	0.37 in	33 mm	9.3 mm	22.8 mm	1.3 in	0.9 in	Sixteenth Brick	90 %	50 W	75 V	2250 VDC	ITE (Commercial)	15 A	Through Hole	54 °C	-40 C	3.3 V	1	Isolated Module
Recom Power RPA50S-4805SW/P	18 V	0.37 in	33 mm	9.3 mm	22.8 mm	1.3 in	0.9 in	Sixteenth Brick	91 %	50 W	75 V	2250 VDC	ITE (Commercial)	10 A	Through Hole	54 °C	-40 C	5 V	1	Isolated Module
Recom Power RPA50S-4812SW/P	18 V	0.37 in	33 mm	9.3 mm	22.8 mm	1.3 in	0.9 in	Sixteenth Brick	89 %	50 W	75 V	2250 VDC	ITE (Commercial)	4.2 A	Through Hole	54 °C	-40 C	12 V	1	Isolated Module
