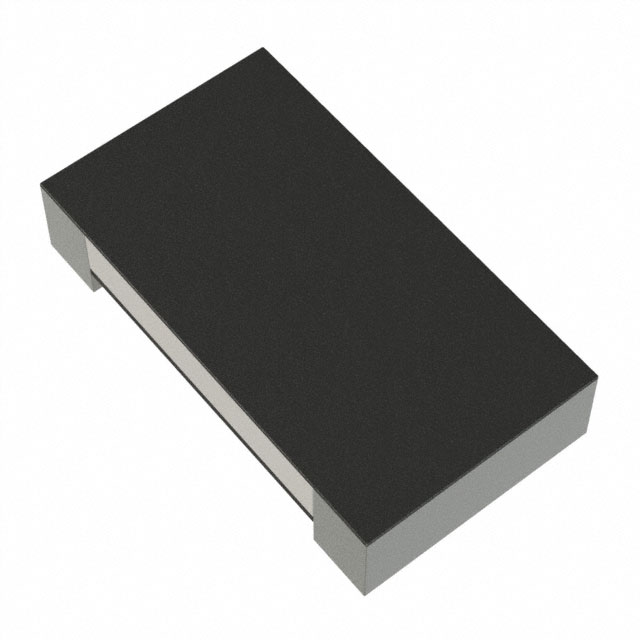

PA Series

Manufacturer: YAGEO

Catalog

CURRENT SENSE RESISTORS - SMD 20 MOHMS 2 W 50PPM/C 2512 AEC-Q200

Part	Ratings	Package / Case	Supplier Device Package	Composition	Number of Terminations [custom]	Power (Watts)	Package / Case	Temperature Coefficient	Features	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Supplier Device Package	Tolerance	Size / Dimension [y]	Power (Watts)
YAGEO PA2512FKE7W0R02E	AEC-Q200	2512 2512 (6432 Metric)	2512	Metal Element	2	2 W	6332 Metric	50 ppm/░C	Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.035 in	0.88 mm	0.02 Ohms	6.35 mm	0.125 "	3.18 mm	0.25 in
YAGEO PA1206FRF470R004L		1206 (3216 Metric)		Metal Element	2	1 W		100 ppm/°C	Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.026 in		4 mOhms	3.2 mm	0.063 "	1.6 mm	0.126 "	0.65 mm	1206
YAGEO PA2512FKM7W0R001E		2512	2512	Metal Element	2	2 W	6332 Metric	75 ppm/°C	Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.035 in	0.88 mm	1 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in
YAGEO PA2512FKE7W0R002E	AEC-Q200	2512 2512 (6432 Metric)	2512	Metal Element	2	2 W	6332 Metric	50 ppm/░C	Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.035 in	0.88 mm	2 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in
YAGEO PA0603-R-070RL		0603		Metal Element	2		1608 Metric	150 ppm/°C	Automotive AEC-Q200 Current Sense		155 C	-55 C	0.024 in		0 mOhms	1.6 mm	0.031 in		0.063 "	0.6 mm		Jumper	0.8 mm
YAGEO PA2512FKE7T0R007E	AEC-Q200	2512 2512 (6432 Metric)	2512	Metal Element	2	3 W	6332 Metric	50 ppm/░C	Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.035 in	0.88 mm	7 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in
YAGEO PA1206FRE070R01Z	AEC-Q200	1206 (3216 Metric)		Metal Element	2	0.25 W		50 ppm/░C	Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.026 in		10 mOhms	3.2 mm	0.063 "	1.6 mm	0.126 "	0.65 mm	1206			0.25 W
YAGEO PA0402-R-070RL		0402 (1005 Metric)		Metal Element	2	0.125 W		150 ppm/°C	Automotive AEC-Q200 Current Sense		125 °C	-55 C	0.016 in	0.4 mm	0 mOhms	1 mm	0.022 in	0.55 mm	0.039 "		0402	Jumper		0.125 W
YAGEO PA2512FKE070R1E	AEC-Q200	2512 2512 (6432 Metric)	2512	Metal Element	2	1 W	6332 Metric	50 ppm/░C	Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.035 in	0.88 mm	0.1 Ohms	6.35 mm	0.125 "	3.18 mm	0.25 in
YAGEO PA2512FKE7T0U75E		2512	2512	Metal Element	2	3 W	6332 Metric	50 ppm/░C	Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant	1 %	170 °C	-55 C	0.035 in	0.88 mm	750 µOhms	6.35 mm	0.125 "	3.18 mm	0.25 in
