060-0238 Series

Catalog

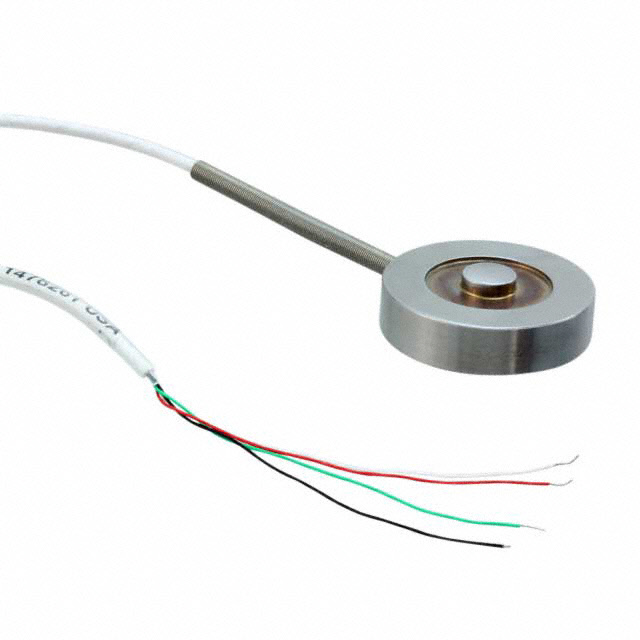

LOAD CELL, BONDED FOIL STRAIN GAGE, MODEL 53, 2000 LB, 10 VDC, -5 °C TO 105 °C

Part	Operating Force	Operating Force	Actuator Style/Size [diameter]	Actuator Style/Size	Compensated Temperature [Max]	Compensated Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Includes	Actuator Type	Sensor Type	Output	Accuracy
Honeywell Sensing and Productivity Solutions 060-0238-10	907.18 kgf	2000 lbs	8.13 mm	Round	71 °C	15 °C	-54 °C	121 C	10 VDC	Sensor	Pushbutton	Load Cell	Voltage	0.5 %
Honeywell Sensing and Productivity Solutions 060-0238-07	453.59 kgf	1000 lbs	8.13 mm	Round	71 °C	15 °C	-54 °C	121 C	10 VDC	Sensor	Pushbutton	Load Cell	Voltage	0.5 %
Honeywell Sensing and Productivity Solutions 060-0238-05	226.8 kgf	500 lbs	8.13 mm	Round	71 °C	15 °C	-54 °C	121 C	10 VDC	Sensor	Pushbutton	Load Cell	Voltage	0.5 %
