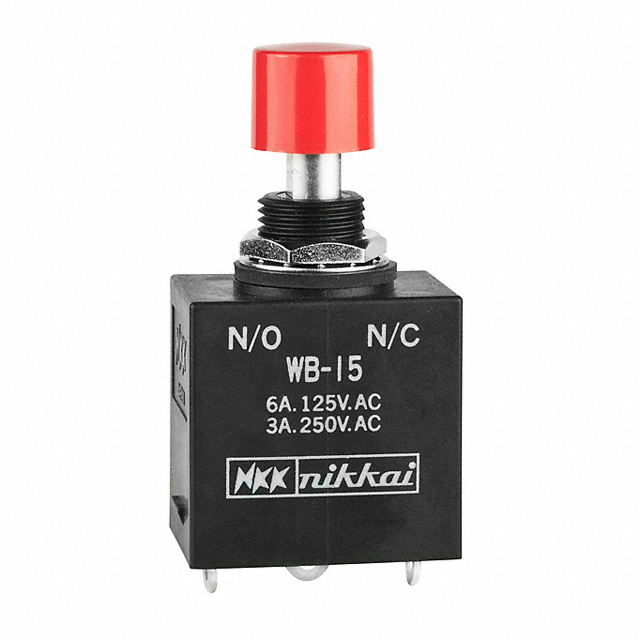

WB15S Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON SPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Termination Style | Ingress Protection | Voltage Rating - AC | Color - Actuator/Cap | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Marking | Actuator Type | Features | Current Rating (Amps) | Type | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 15000 Cycles | 30000 Steps | -30 ░C | 70 °C | 30 V | Solder Lug | IP67 - Dust Tight Waterproof | 125 V | White | On-Mom | 12.5 mm | No Marking | Button Round | Stainless Steel | 6 A | Standard | Panel Mount Rear | SPDT |
 NKK Switches | 15000 Cycles | 30000 Steps | -30 ░C | 70 °C | 30 V | Solder Lug | IP67 - Dust Tight Waterproof | 125 V | Red | On-Mom | 12.5 mm | No Marking | Button Round | Stainless Steel | 6 A | Standard | Panel Mount Rear | SPDT |
