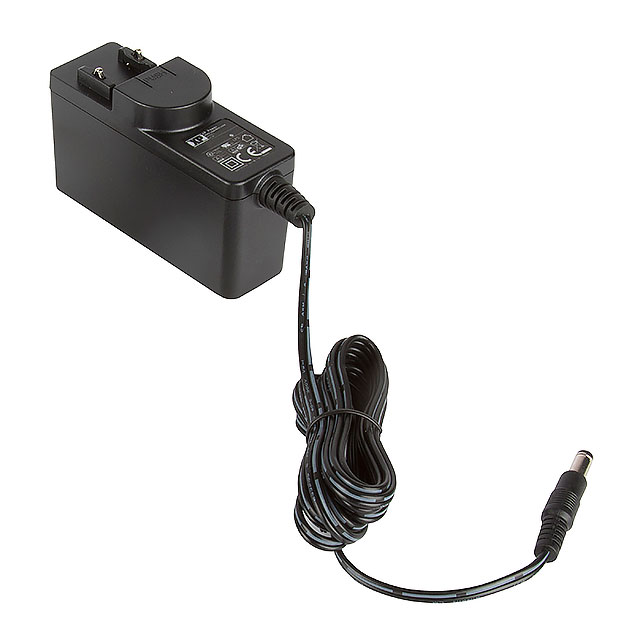

ACM12 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC POWER SUPPLY, ITE & MEDICAL, 1 OUTPUT, 12 W, 18 V, 666 MA
| Part | Form | Cord Length | Cord Length | Output Connector [diameter] | Output Connector | Output Connector [x] | Power (Watts) | Input Connector | Efficiency | Voltage - Output | Current - Output (Max) [Max] | Applications | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | No Load Power Consumption | Input Type | Voltage - Input [Max] | Voltage - Input [Min] | Region Utilized |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Wall Mount | 1.5 m | 59 in | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 12 W | Multi-Blade (Sold Separately) | CoC Tier 2 Level VI | 18 V | 666 mA | ITE (Commercial) Medical | 60601-1; 62368-1 | 60 °C | -5 °C | CB CE TUV UL | 1.9 in | 48.3 mm | 75.9 mm | 2.99 in | 1.19 in | 30.2 mm | 75 mW | Multi-Blade (Sold Separately) | 264 VAC | 90 VAC | International |
XP Power | Wall Mount | 1.5 m | 59 in | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 12 W | Multi-Blade (Sold Separately) | CoC Tier 2 Level VI | 12 V | 1 A | ITE (Commercial) Medical | 60601-1; 62368-1 | 60 °C | -5 °C | CB CE TUV UL | 1.9 in | 48.3 mm | 75.9 mm | 2.99 in | 1.19 in | 30.2 mm | 75 mW | Multi-Blade (Sold Separately) | 264 VAC | 90 VAC | International |
