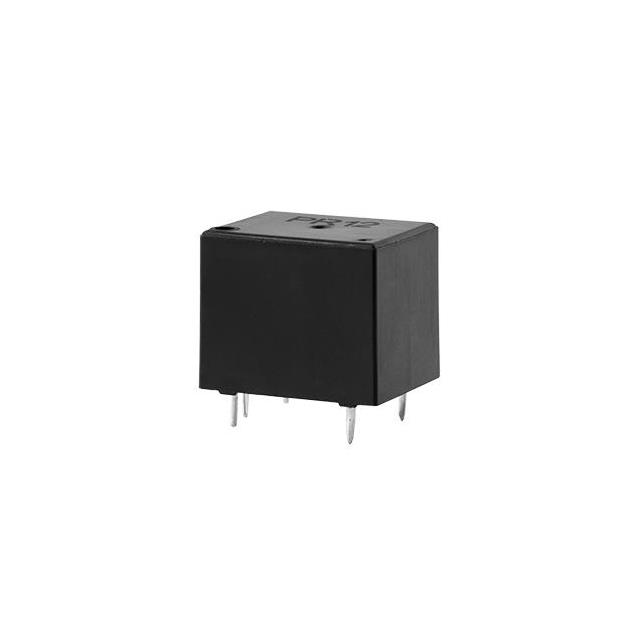

PR12-5V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPST 15A 5V
| Part | Coil Resistance | Coil Current | Must Release Voltage | Mounting Type | Operate Time | Coil Voltage | Switching Voltage [Max] | Contact Rating (Current) | Must Operate Voltage | Relay Type | Release Time | Termination Style | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Material | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 70 Ohms | 71.4 mA | 0.5 VDC | Through Hole | 10 ms | 5 VDC | 28 VDC 250 VAC | 15 A | 3.5 VDC | General Purpose | 5 ms | PC Pin | SPST-NO (1 Form A) | 85 °C | -40 C | Non Latching | Silver Alloy | 420 W 3750 VA |
Same Sky (Formerly CUI Devices) | 71.4 mA | 0.5 VDC | Through Hole | 10 ms | 5 VDC | 28 VDC 250 VAC | 15 A | 3.5 VDC | General Purpose | 5 ms | PC Pin | SPST-NO (1 Form A) | 85 °C | -40 C | Non Latching | Silver Alloy | 420 W 3750 VA | |
 Same Sky (Formerly CUI Devices) | 70 Ohms | 71.4 mA | 0.5 VDC | Through Hole | 10 ms | 5 VDC | 28 VDC 250 VAC | 15 A | 3.5 VDC | General Purpose | 5 ms | PC Pin | SPDT (1 Form C) | 85 °C | -40 C | Non Latching | Silver Alloy | 420 W 3750 VA |
Same Sky (Formerly CUI Devices) | 71.4 mA | 0.5 VDC | Through Hole | 10 ms | 5 VDC | 28 VDC 250 VAC | 15 A | 3.5 VDC | General Purpose | 5 ms | PC Pin | SPDT (1 Form C) | 85 °C | -40 C | Non Latching | Silver Alloy | 420 W 3750 VA |
