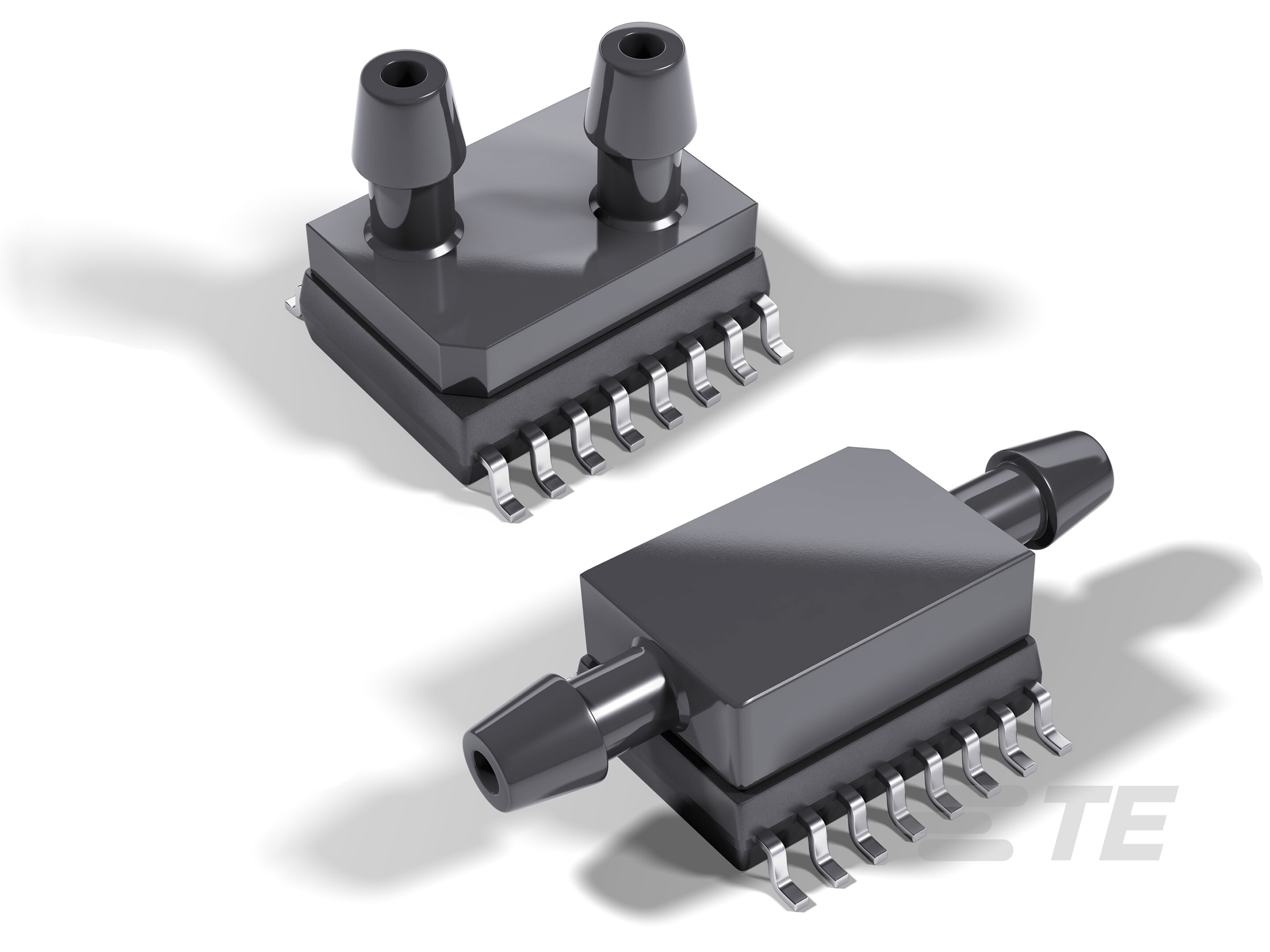

SMI 6000 Series

Catalog

40CMH2O GAUGE SENSOR

Part	Termination Style	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Mounting Type	Port Size	Port Size	Port Size	Applications	Port Style	Pressure Type	Output Type	Accuracy	Output	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Operating Pressure	Operating Pressure	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors SM6295-BGC-S-040-000	Gull Wing	16-SOIC	4.75 V	5.25 V	16-SOIC Dual Top Ports	0.295 " 7.5 mm Width	Surface Mount	Dual Male Tube	0.09 in	2.29 mm	Board Mount	Barbed	Gauge	Analog Voltage I2C	1 %	16 b	33.09 kPa	4.8 PSI	Temperature Compensated	5 kPa	0.73 PSI	-40 C	105 ░C
TE Connectivity AMP Connectors SM6295-BGC-T-040-002
TE Connectivity AMP Connectors SM6291-BCE-S-030.00-231	Gull Wing	16-SOIC	4.75 V	5.25 V	16-SOIC Dual Top Ports	0.295 " 7.5 mm Width	Surface Mount	G Male	0.5 in	0.5 in	Medical Ventilation	Barbless	Gauge	I2C	1 %	16 b	83.36 kPa	12.09 PSI	Temperature Compensated	13.73 kPa	1.99 PSI	-40 C	105 ░C
TE Connectivity AMP Connectors SM6331-BCE-S-005.50-431
