FE/FR/FT/FX Series

Catalog

RECTIFIERS DIODE, FAST, D8X7.5_LOWRTH, 100V, 20A, 150C

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Mounting Type	Package / Case	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]

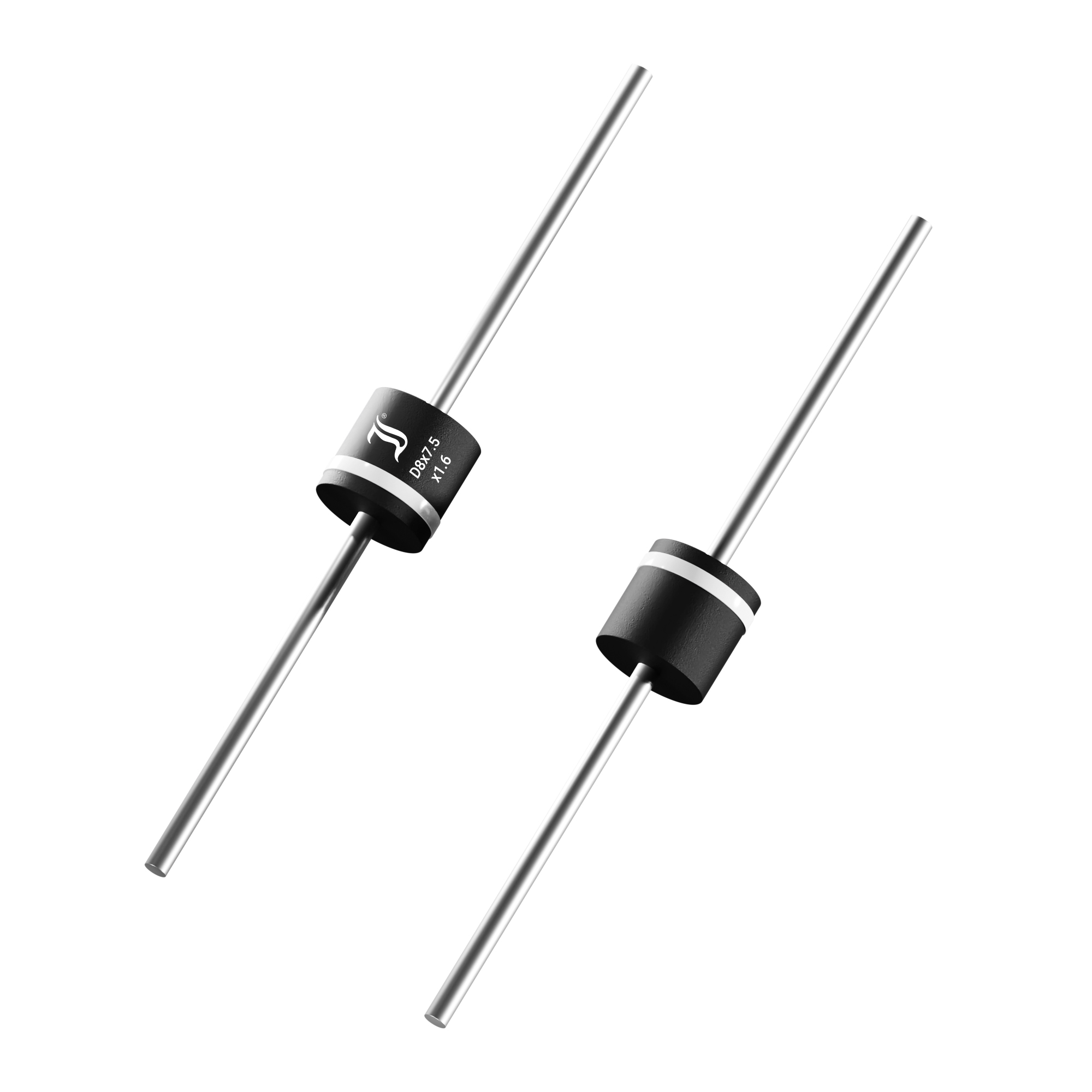

Diotec Semiconductor FX2000B	P-600 P600	100 V	940 mV	5 µA	200 ns	150 °C	-50 °C	200 mA 500 ns	Through Hole	P600 Axial	Standard
Diotec Semiconductor FR2A	DO-214AA (SMB)	50 V	1.3 V	5 µA	150 ns	150 °C	-50 °C	200 mA 500 ns	Surface Mount	DO-214AA SMB	Standard	2 A
Diotec Semiconductor FR1M	DO-214AC (SMA)	1000 V		5 µA	500 ns	150 °C	-50 °C	200 mA 500 ns	Surface Mount	DO-214AC SMA	Standard	1 A	1.3 V
Diotec Semiconductor FRL1K	SOD-123FL	800 V		5 µA	500 ns	150 °C	-50 °C	200 mA 500 ns	Surface Mount	SOD-123F	Standard	1 A	1.3 V
Diotec Semiconductor FR2TSMA	DO-214AC (SMA)	1300 V	2 A	5 µA	500 ns	150 °C	-50 °C	200 mA 500 ns	Surface Mount	DO-214AC SMA	Standard	2 A	1.8 V
Diotec Semiconductor FE3A	DO-201	50 V		5 µA	50 ns	175 ░C	-50 °C	200 mA 500 ns	Through Hole	Axial DO-201AA DO-27	Standard	3 A	980 mV
Diotec Semiconductor FR2G	DO-214AA (SMB)	400 V	1.3 V	5 µA	150 ns	150 °C	-50 °C	200 mA 500 ns	Surface Mount	DO-214AA SMB	Standard	2 A
Diotec Semiconductor FRL1B	SOD-123FL	100 V		5 µA	150 ns	150 °C	-50 °C	200 mA 500 ns	Surface Mount	SOD-123F	Standard	1 A	1.3 V
Diotec Semiconductor FT2000AB	TO-220AC	100 V	960 mV	5 µA	200 ns	150 °C	-50 °C	200 mA 500 ns	Through Hole	TO-220-2	Standard
Diotec Semiconductor FE6F	P600	300 V	1 V 5 A	5 µA	50 ns	175 ░C	-50 °C	200 mA 500 ns	Through Hole	P600 Axial	Standard	6 A
