SBE160 Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K

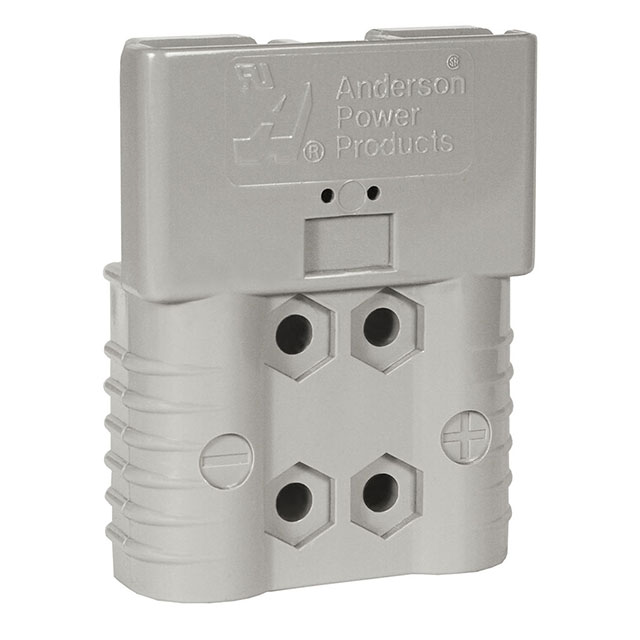

HEAVY DUTY POWER CONNECTORS SBE160A HOUSING ONLY GRAY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Note | Fastening Type | Voltage Rating | Material - Insulation | Current Rating (Amps) | Mounting Type | Number of Rows | Number of Positions | Color | Contact Termination | Contact Type | Connector Type | Stacking Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Anderson Power Products, Inc. | -20 ░C | 105 ░C | Contacts Not Included | Spring Retention | 150 VDC | Polybutylene Terephthalate (PBT) | 160 A | Free Hanging (In-Line) | 1 | 2 | Gray | Crimp | Non-Gendered | Non-Gendered | Side to Side |
