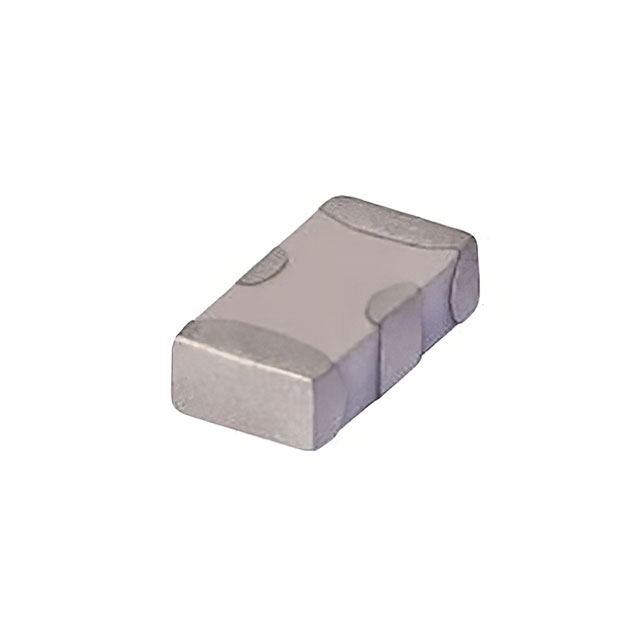

LFCN-1000 Series
Manufacturer: Mini-Circuits
Beta
⌘K
LTCC LOW PASS FILTER, DC - 1000
| Part | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Insertion Loss | Frequency | Filter Type | Impedance | Mounting Type | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 0.037 in | 0.94 mm | 1 dB | 1 GHz | Low Pass | 50 Ohms | Surface Mount | 4-SMD No Lead | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
