AEH80 Series
Manufacturer: XP Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

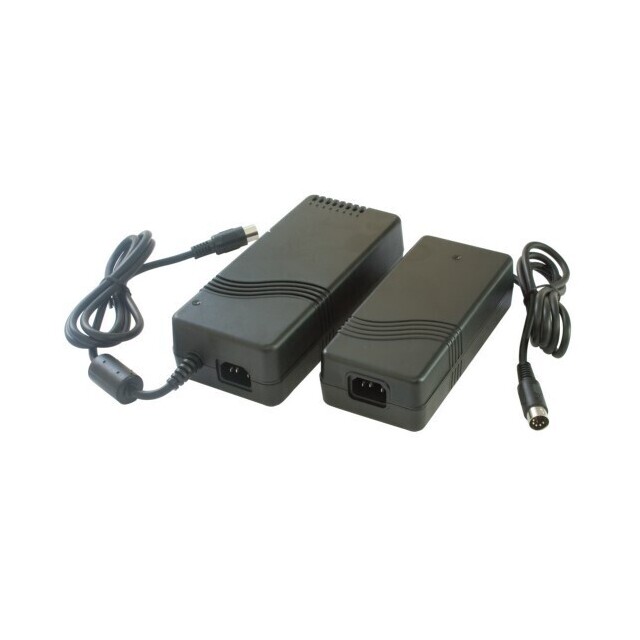

AC/DC DESKTOP ADAPTER 24V 79W
| Part | Cord Length | Region Utilized | Input Type | Output Connector Pin Count | Output Connector | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Output | Form | Power (Watts) | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Current - Output (Max) | Approval Agency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Efficiency | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 48 in | International | Cord (Sold Separately) | 5 | 5 Pin DIN | ITE (Commercial) | 60 °C | 0 °C | 24 V | Desktop (Class I) | 79 W | 6.61 in | 1.75 in | 3.09 in | 3.3 A | CE cUL | 90 V | 264 V | 80 % | IEC 320-C14 |
 XP Power | 48 in | International | Cord (Sold Separately) | 5 | 5 Pin DIN | ITE (Commercial) | 60 °C | 0 °C | 12 V | Desktop (Class I) | 79 W | 6.61 in | 1.75 in | 3.09 in | 6.6 A | CE cUL | 90 V | 264 V | 80 % | IEC 320-C14 |
