MS3120E16 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

RECEPT

Part	Contact Material	Applications	Insert Material	Termination	Connector Type	Mounting Type	Ingress Protection	Grade	Contact Finish - Mating	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Color	Shell Material	Number of Positions	Qualification	Fastening Type	Current Rating	Shell Size - Insert Length	Shell Size - Insert Width	Voltage Rating	Shielding	Mounting Feature	Primary Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Backshell Material	Plating	Features
Amphenol Aerospace Operations MS3120E16-26S(LC)
Amphenol Aerospace Operations MS3120E16-8A
Amphenol Aerospace Operations MS3120E16-8P	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Crimp	Male Pins Receptacle	Panel Mount	Environment Resistant	Military	Gold	N (Normal)	125 °C	-55 °C	Cadmium Olive Drab Chromate	Olive Drab	Aluminum	8	MIL-DTL-26482 Series I	Bayonet Lock	13 A	16 mm	8 mm	1000 V	Unshielded	Flange	Metal

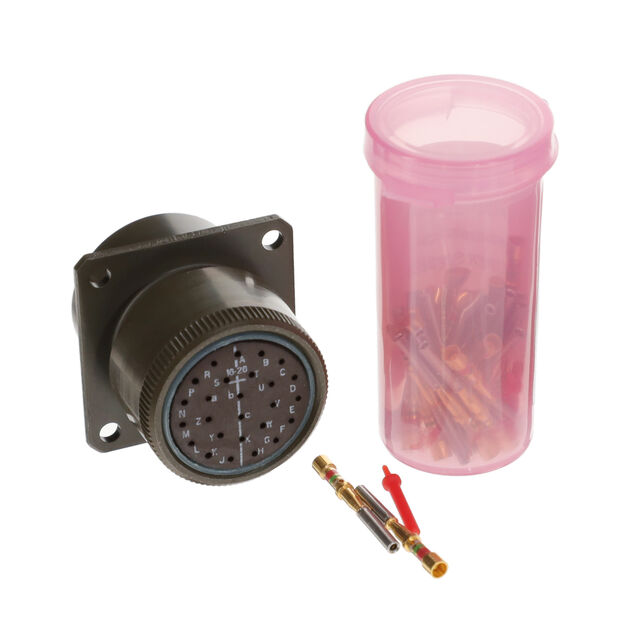

Amphenol Aerospace Operations MS3120E16-26S	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Crimp	Female Sockets Receptacle	Panel Mount	Environment Resistant	Military	Gold	N (Normal)	125 °C	-55 °C	Cadmium Olive Drab Chromate	Olive Drab	Aluminum	26	MIL-DTL-26482 Series I	Bayonet Lock	7.5 A			600 V	Unshielded	Flange	Metal	16 S	26
Amphenol Aerospace Operations MS3120E16-26PW	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Crimp	Male Pins Receptacle	Panel Mount	Environment Resistant	Military	Gold	W	125 °C	-55 °C	Cadmium Olive Drab Chromate	Olive Drab	Aluminum	26	MIL-DTL-26482 Series I	Bayonet Lock					Unshielded	Flange	Metal	16 S	26	Aluminum	Olive Drab Chromate over Cadmium	Backshell
Amphenol Aerospace Operations MS3120E16-26B
Amphenol Aerospace Operations MS3120E16-8B
Amphenol Aerospace Operations MS3120E16-26P	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Crimp	Male Pins Receptacle	Panel Mount	Environment Resistant	Military	Gold	N (Normal)	125 °C	-55 °C	Cadmium Olive Drab Chromate	Olive Drab	Aluminum	26	MIL-DTL-26482 Series I	Bayonet Lock					Unshielded	Flange	Metal	16 S	26	Aluminum	Olive Drab Chromate over Cadmium	Backshell
Amphenol Aerospace Operations MS3120E16-8S	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Crimp	Female Sockets Receptacle	Panel Mount	Environment Resistant	Military	Gold	N (Normal)	125 °C	-55 °C	Cadmium Olive Drab Chromate	Olive Drab	Aluminum	8	MIL-DTL-26482 Series I	Bayonet Lock	13 A	16 mm	8 mm	1000 V	Unshielded	Flange	Metal
