KGF Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT STD MB CMAP - FN

Part	Temperature Coefficient	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Features	Mounting Type	Capacitance	Package / Case	Voltage - Rated	Thickness (Max)
KYOCERA AVX KGF31BR71E102JT	X7R	25 VDC	0.037 in	0.94 mm	Boardflex Sensitive	-55 C	125 °C	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	1206 (3216 Metric)	Soft Termination	MLCC Surface Mount	0.001 µF
KYOCERA AVX KGF31GR72D473KU	X7R	200 VDC	0.037 in	0.94 mm	Boardflex Sensitive	-55 C	125 °C	10 %	0.063 "	0.126 "	3.2 mm	1.6 mm	1206 (3216 Metric)	Soft Termination	MLCC Surface Mount
KYOCERA AVX KGF32LR71H475ML	X7R	50 VDC			Boardflex Sensitive	-55 C	125 °C	20 %	0.098 in	0.13 "	3.3 mm	2.5 mm	1210	Soft Termination	MLCC Surface Mount	4.7 µF	3225 Metric

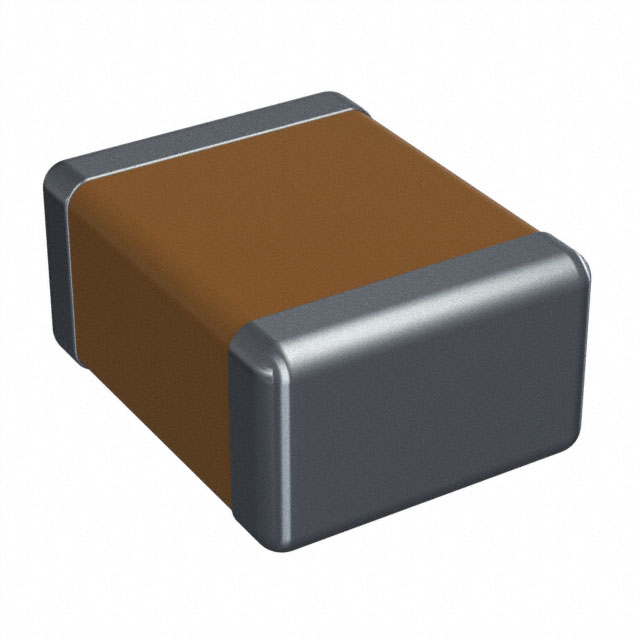

KYOCERA AVX KGF32QR72A104KM	X7R	100 V	0.06 in	1.52 mm	Boardflex Sensitive	-55 C	125 °C	10 %	0.098 in	0.126 "	3.2 mm	2.5 mm	1210	Soft Termination	MLCC Surface Mount	100000 pF	3225 Metric
KYOCERA AVX KGF43JR73D103JV	X7R	2000 V			Boardflex Sensitive	-55 C	125 °C	5 %	0.126 in	0.177 in	4.5 mm	3.2 mm	1812 (4532 Metric)	Soft Termination	MLCC Surface Mount	10000 pF		2 kV
KYOCERA AVX KGF32FR71H474KU	X7R	50 VDC	0.05 in		Boardflex Sensitive	-55 C	125 °C	10 %	0.098 in	0.126 "	3.2 mm	2.5 mm	1210	Soft Termination	MLCC Surface Mount	0.47 µF	3225 Metric		1.27 mm
KYOCERA AVX KGF31BR71H122JT	X7R	50 VDC	0.037 in	0.94 mm	Boardflex Sensitive	-55 C	125 °C	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	1206 (3216 Metric)	Soft Termination	MLCC Surface Mount	1200 pF
KYOCERA AVX KGF31BR71C473JT	X7R	16 V	0.037 in	0.94 mm	Boardflex Sensitive	-55 C	125 °C	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	1206 (3216 Metric)	Soft Termination	MLCC Surface Mount
KYOCERA AVX KGF21BR71C563KT	X7R	16 V	0.037 in	0.94 mm	Boardflex Sensitive	-55 C	125 °C	10 %	0.049 "	0.079 in	2 mm	1.25 mm	0805	Soft Termination	MLCC Surface Mount	56000 pF
KYOCERA AVX KGF31XS72A475KUA000
