Dynamic Dyna-Tap Series Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
DYNAMIC D-5 DYNATAP 20P ASSY DIN TYPE
| Part | Shrouding | Contact Shape | Termination | Insulation Color | Number of Rows | Contact Type | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Mounting Type | Style | Contact Material | Number of Positions | Contact Finish - Mating | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Features | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Current Rating (Amps) | Contact Finish | Fastening Type | Wire Type | Cable Termination | Color | Contact Finish Thickness | Contact Finish Thickness | Row Spacing | Row Spacing | Pitch | Pitch | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Shrouded - 4 Wall | Rectangular | Solder | Black | 5 | Tab | 1.673 in | 42.5 mm | 0.38 µm | 15 µin | 630 VAC/DC | Surface Mount | Board to Board Cable | Copper Alloy | 20 | Gold | All | 0.382 in | 9.7 mm | Mounting Flange | 0.4 in | 10.16 mm | -55 C | 105 ░C | Header | Glass Filled Polyester Thermoplastic | Varies by Wire Gauge | ||||||||||||
TE Connectivity AMP Connectors | 5 | Tab | Panel Mount | 20 | Plug | Gold | Push-Pull | Discrete | Crimp | Black | 0.38 µm | 15 µin | 0.382 in | 9.7 mm | 10.16 mm | 0.4 in | |||||||||||||||||||||||

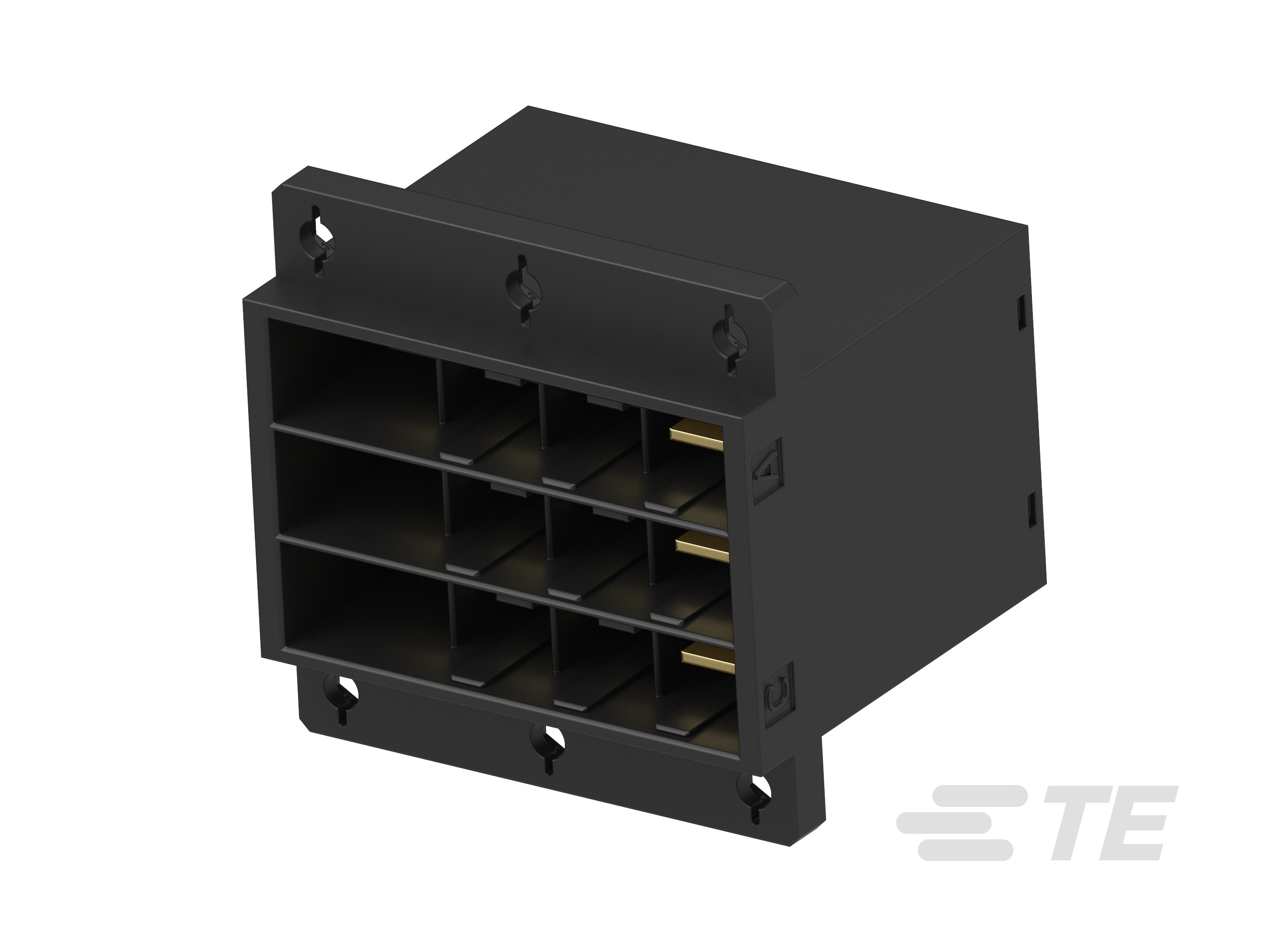

 TE Connectivity AMP Connectors | Tab | Free Hanging (In-Line) | 12 | Mounting Flange | Plug | Nickel | Push-Pull | Discrete | Crimp | Black | 1.27 µm | 50 µin | 0.4 in | 10.16 mm | 10.16 mm | 0.4 in | 3 |
