PH-A Series

Catalog

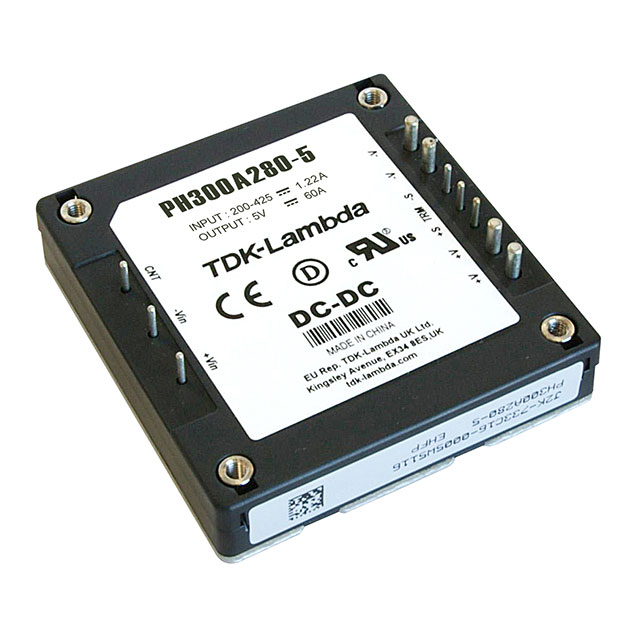

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, HALF BRICK, 2:1, 300 W, 1 OUTPUT, 5 V

Part	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Voltage - Output 1	Number of Outputs	Supplier Device Package	Package / Case	Voltage - Isolation	Mounting Type	Voltage - Input (Max) [Max]	Type	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Efficiency	Current - Output (Max)
TDK Corporation PH300A280-5	200 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 C	100 °C	Adjustable Output Baseplate Remote On/Off Remote Sense	ITE (Commercial)	5 V	1	Half Brick	Half Brick	3000 V	Through Hole	425 V	Isolated Module	300 W	60 A	CE	89 %
TDK Corporation PH300A280-12/T	200 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 C	100 °C	OCP OVP Remote On/Off	ITE (Commercial)	12 V	1		Half Brick	3000 V	Through Hole	425 V	Isolated Module	300 W	25 A		89 %
TDK Corporation PH75A280-15	200 V	37.2 mm	1.46 "	2.3 in	0.5 in	58.3 mm	12.7 mm	-40 C	85 °C	OCP OVP Remote On/Off	ITE (Commercial)	15 V	1		8-DIP Module 1/4 Brick	3000 V	Through Hole	425 V	Isolated Module	75 W			90 %	5 A
TDK Corporation PH300A280-48/T	200 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 C	100 °C	OCP OVP Remote On/Off	ITE (Commercial)	48 V	1		Half Brick	3000 V	Through Hole	425 V	Isolated Module	300 W	6.3 A		92 %
TDK Corporation PH75A280-3.3	200 V	37.2 mm	1.46 "	2.3 in	0.5 in	58.3 mm	12.7 mm	-40 C	85 °C	OCP OVP Remote On/Off	ITE (Commercial)	3.3 V	1		8-DIP Module 1/4 Brick	3000 V	Through Hole	425 V	Isolated Module	75 W	15 A		83 %
TDK Corporation PH300A280-24/T	200 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 C	100 °C	OCP OVP Remote On/Off	ITE (Commercial)	24 V	1		Half Brick	3000 V	Through Hole	425 V	Isolated Module	300 W	12.5 A		90.5 %
