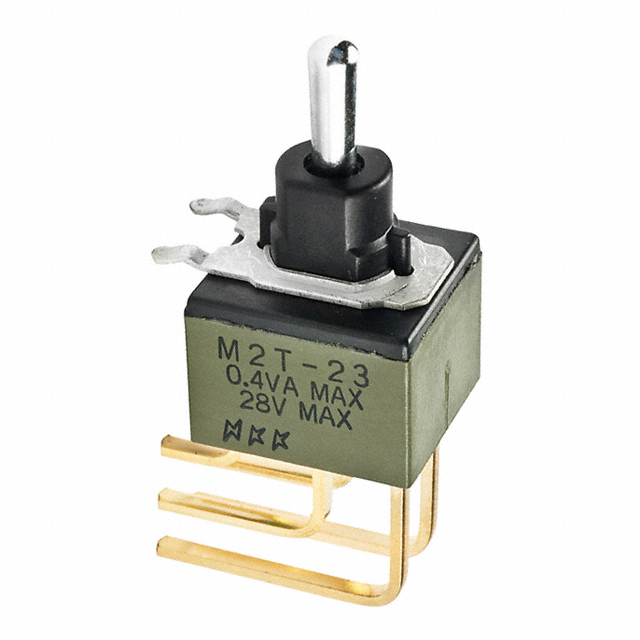

M2T23S4 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Material | Actuator Type | Bushing Thread | Voltage Rating - DC | Features | Termination Style | Actuator Length [x] | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Current Rating (Amps) | Illumination | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Nickel Plated | Standard Round | Unthreaded | 30 V | Process Sealed | PC Pin | 7.62 mm | 125 V | 85 °C | -30 ░C | DPDT | 3 A 6 A | Non-Illuminated | Right Angle Through Hole Vertical | On-Off-On |
 NKK Switches | 50000 Cycles | Brass Nickel Plated | Standard Round | Unthreaded | 28 V | Process Sealed | PC Pin | 7.62 mm | 28 V | 85 °C | -30 ░C | DPDT | 0.4 VA | Non-Illuminated | Right Angle Through Hole Vertical | On-Off-On |
