2863060 Series
Manufacturer: NorComp Inc.
Beta
⌘K

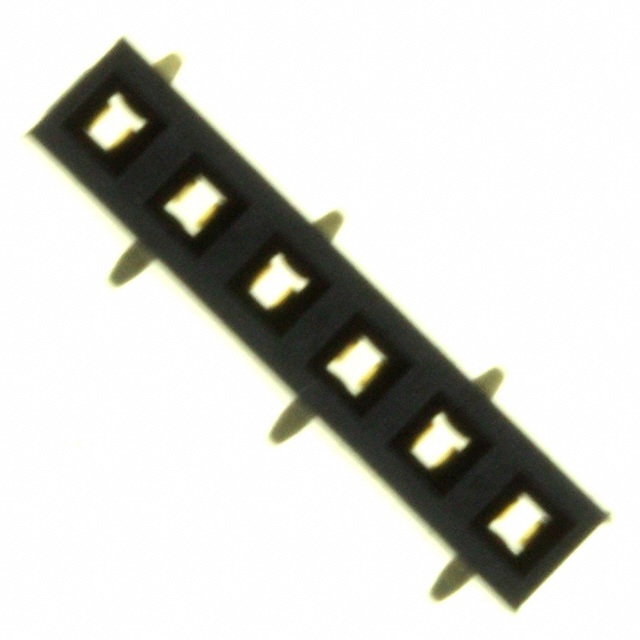

28630606RP2 ROHS COMPLIANT: YES
| Part | Insulation Material | Contact Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Color | Connector Type | Mounting Type | Number of Positions | Contact Finish Thickness - Mating | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Type | Termination | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Square | 2.54 µm | 100 µin | Push-Pull | All | 0.17 in | 4.32 mm | Black | Receptacle | Surface Mount | 6 | Flash | 1 | 0.079 " | 2 mm | Tin | Female Socket | Solder | UL94 V-0 | -40 C | 105 ░C | Gold |
