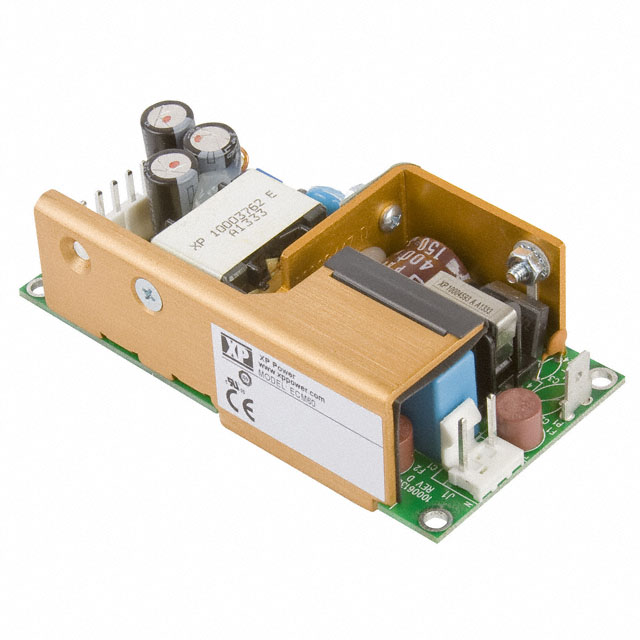

ECM60 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 24V 60W

Part	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Applications	Efficiency	Mounting Type	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Features	Number of Outputs	Current - Output 1	Power (Watts)	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 3	Current - Output 3	Current - Output 2	Voltage - Output 2
XP Power ECM60US24-C	70 °C	4000 V	CB CE TUV UL	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	24 V	Adjustable Output Universal Input	1	2.5 A	60 W	Enclosed
XP Power ECM60US07	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	7 V	Adjustable Output Universal Input	1	8.6 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60US24	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	24 V	Adjustable Output Universal Input	1	2.5 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60US48	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	48 V	Adjustable Output Universal Input	1	1.25 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60US33	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	33 V	Adjustable Output Universal Input	1	1.8 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60US09	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	9 V	Adjustable Output Universal Input	1	6.7 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60US05	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	5 V	Adjustable Output Universal Input	1	12 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60UT31	70 °C	4000 V	CB CE	ITE (Commercial) Medical		Chassis Mount	62368-1	264 VAC	90 VAC	5 V	Adjustable Output Universal Input	3	8 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	-12 V	500 mA	3 A	12 V
XP Power ECM60US12	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	12 V	Adjustable Output Universal Input	1	5 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
XP Power ECM60US15	70 °C	4000 V	CB CE	ITE (Commercial) Medical	80 %	Chassis Mount	62368-1	264 VAC	90 VAC	15 V	Adjustable Output Universal Input	1	4 A	60 W	Open Frame	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm
