ALSR Series

Catalog

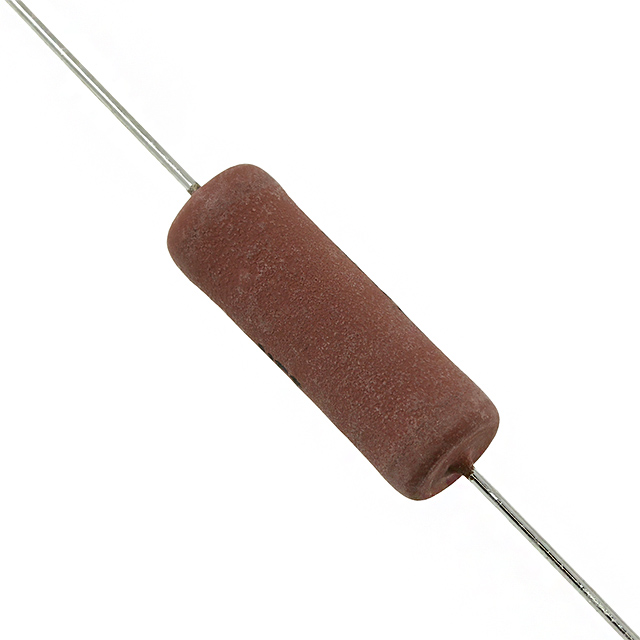

WIREWOUND RESISTORS - THROUGH HOLE 5WATTS 20OHMS 5%

Part	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Resistance	Composition	Features	Number of Terminations	Power (Watts)	Size / Dimension Length	Size / Dimension Diameter	Package / Case	Package Name	Temperature Coefficient
Vishay Dale ALSR0520R00JE12	5 %	250 °C	-65 °C	20 Ohm	Wirewound	Moisture Resistant	2	5 W	0.875 in	0.312 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR0533R00FE12	1 %	250 °C	-65 °C	33 Ohms	Wirewound	Moisture Resistant	2	5 W	0.875 in	0.312 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR05R2000FE12	1 %	250 °C	-65 °C	200 mOhms	Wirewound	Moisture Resistant	2	5 W	0.875 in	0.312 in	Axial	Axial
Vishay Dale ALSR0517K50JE12	5 %	250 °C	-65 °C	17.5 kOhm	Wirewound	Moisture Resistant	2	5 W	0.875 in	0.312 in	Axial	Axial	30 ppm/¯C

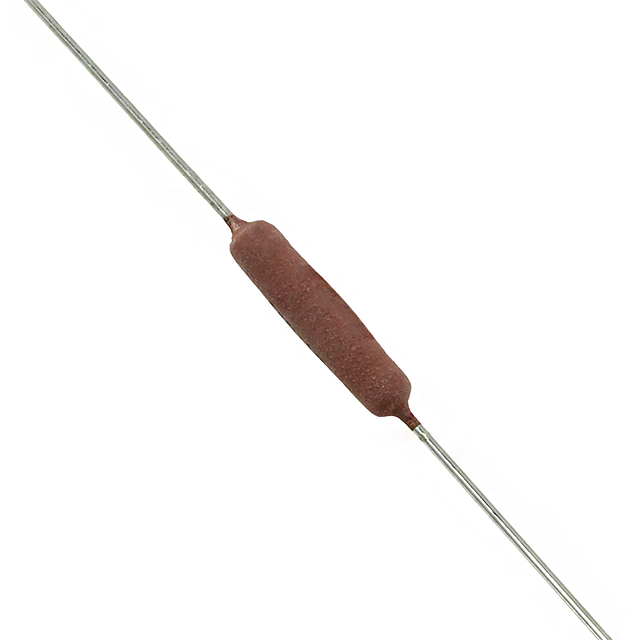

Vishay Dale ALSR011K000FE12	1 %	250 °C	-65 °C	1 kOhm	Wirewound	Moisture Resistant	2	1 W	0.406 in	0.11 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR0139R00JE12	5 %	250 °C	-65 °C	39 Ohm	Wirewound	Moisture Resistant	2	1 W	0.406 in	0.11 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR03100R0JE48	5 %	250 °C	-65 °C	100 Ohms	Wirewound	Moisture Resistant	2	3 W	0.5 in	0.18 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR012K000JE12	5 %	250 °C	-65 °C	2 kOhm	Wirewound	Moisture Resistant	2	1 W	0.406 in	0.11 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR0139R00FE12	1 %	250 °C	-65 °C	39 Ohm	Wirewound	Moisture Resistant	2	1 W	0.406 in	0.11 in	Axial	Axial	30 ppm/¯C
Vishay Dale ALSR0582R00FE12	1 %	250 °C	-65 °C	82 Ohm	Wirewound	Moisture Resistant	2	5 W	0.875 in	0.312 in	Axial	Axial	30 ppm/¯C
