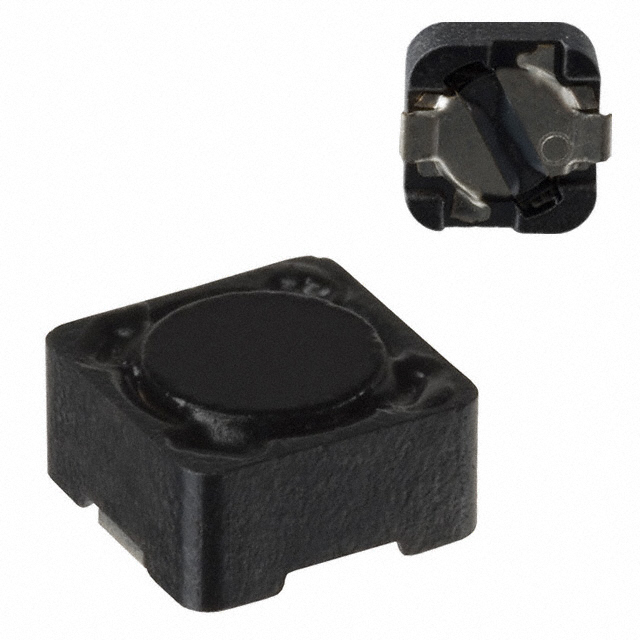

SPD73/R Series
Manufacturer: Delevan
Beta
⌘K
POWER INDUCTORS - SMD 22UH 20% .19OHM SHIELDED CHOKE SMT
| Part | DC Resistance (DCR) [Max] | Mounting Type | Package / Case | Inductance Frequency - Test | Current - Saturation (Isat) | Shielding | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Material - Core | Inductance | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | 190 mOhm | Surface Mount | Nonstandard | 1 kHz | 1.75 A | Shielded | 20 % | -55 C | 125 °C | 0.154 in | 3.9 mm | 1.75 A | Ferrite | 22 µH | Drum Core Wirewound | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm |
Delevan | 50 mOhm | Surface Mount | Nonstandard | 100 kHz | 3.5 A | Shielded | 20 % | -55 C | 125 °C | 0.154 in | 3.9 mm | 3.5 A | Ferrite | 4.7 ÁH | Drum Core Wirewound | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm |
