BPSS Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Part	Current - Saturation (Isat)	Inductance Frequency - Test	Shielding	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Inductance	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Pulse Electronics BPSS000807406R8M00	3.9 A	100 kHz	Shielded	20 %	0.362 in	7.4 mm	9.2 mm	0.291 "	Surface Mount	-40 C	105 ░C	34 mOhm	4 mm	0.157 in	Nonstandard	6.8 µH	3.9 A
Pulse Electronics BPSS00050522100T00	1.4 A	100 kHz	Shielded	30 %	0.244 "	5 mm	6.2 mm	0.197 "	Surface Mount	-40 C	105 ░C	160 mOhm			Nonstandard	10 µH	1.51 A	0.087 in	2.2 mm
Pulse Electronics BPSS00050522100M00	1.4 A	100 kHz	Shielded	20 %	0.244 "	5 mm	6.2 mm	0.197 "	Surface Mount	-40 C	105 ░C	160 mOhm			Nonstandard	10 µH	1.51 A	0.087 in	2.2 mm
Pulse Electronics BPSS00080740820M00	1.2 A	100 kHz	Shielded	20 %	0.362 in	7.4 mm	9.2 mm	0.291 "	Surface Mount	-40 C	105 ░C	360 mOhm	4 mm	0.157 in	Nonstandard	82 µH	1.12 A
Pulse Electronics BPSS00080740330T00	2 A	100 kHz	Shielded	30 %	0.362 in	7.4 mm	9.2 mm	0.291 "	Surface Mount	-40 C	105 ░C	140 mOhm	4 mm	0.157 in	Nonstandard	33 µH	1.9 A
Pulse Electronics BPSS00080725150M00	2.3 A	100 kHz	Shielded	20 %	0.343 in	7.4 mm	8.7 mm	0.291 "	Surface Mount	-40 C	105 ░C	170 mOhm		0.098 in	Nonstandard	15 µH	1.7 A			2.5 mm
Pulse Electronics BPSS00080740100M00	3.4 A	100 kHz	Shielded	20 %	0.362 in	7.4 mm	9.2 mm	0.291 "	Surface Mount	-40 C	105 ░C	55.6 mOhm	4 mm	0.157 in	Nonstandard	10 µH	3.25 A

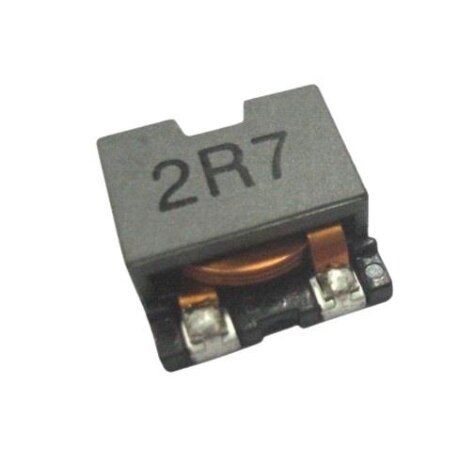

Pulse Electronics BPSS000505221R8T00	3.6 A	100 kHz	Shielded	30 %	0.244 "	5 mm	6.2 mm	0.197 "	Surface Mount	-40 C	105 ░C				Nonstandard	1.8 µH	3.12 A	0.087 in	2.2 mm		32 mOhm
Pulse Electronics BPSS000807405R6T00	4.1 A	100 kHz	Shielded	30 %	0.362 in	7.4 mm	9.2 mm	0.291 "	Surface Mount	-40 C	105 ░C		4 mm	0.157 in	Nonstandard	5.6 µH	4.6 A				29 mOhm
