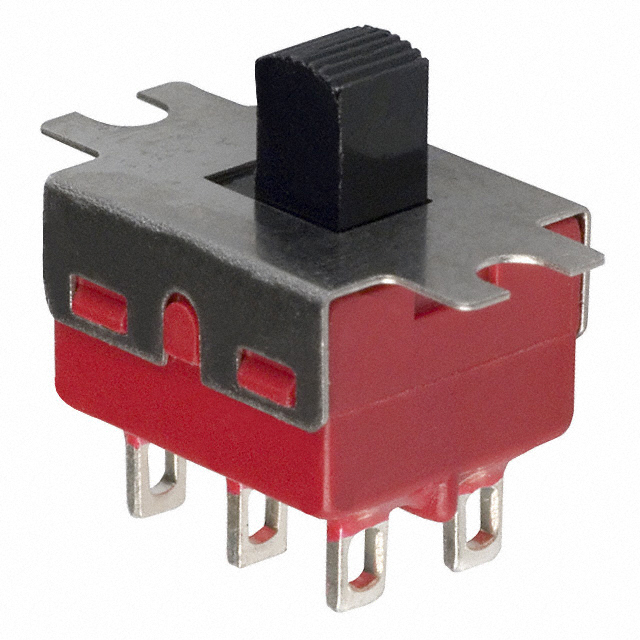

4M1-SDP Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH SLIDE DPDT 5A 125V
| Part | Actuator Material | Electrical Life | Contact Timing | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] | Contact Material | Contact Finish | Mounting Type | Actuator Type | Switch Function | Current Rating (Amps) | Circuit | Voltage Rating - DC | Voltage Rating - AC | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | Polyamide (PA) Nylon | 30000 Cycles | Not Specified | Solder Lug | 85 °C | -30 ░C | 5.1 mm | Silver (Ag) | Silver | Panel Mount | Standard | On-On | 5 A | DPDT | 28 V | 125 V | Epoxy Sealed Terminals |
