RPM22 Series

Catalog

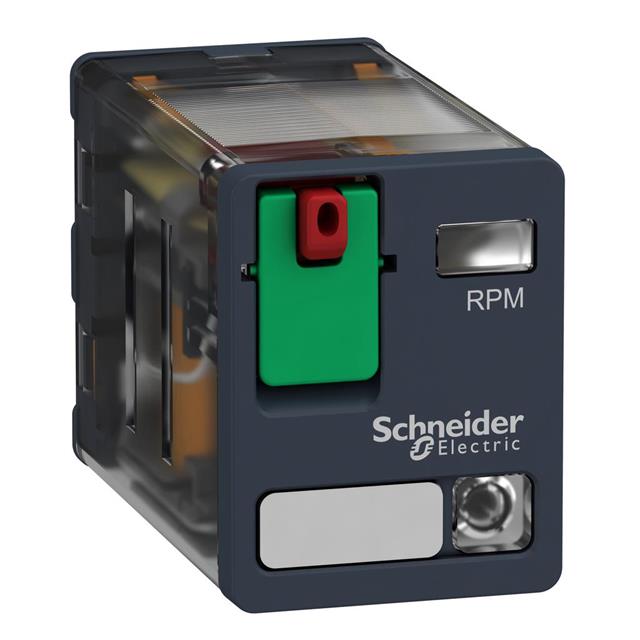

POWER RELAY, DPDT, 120 VAC, 15 A, ZELIO RPM SERIES, SOCKET

Part	Coil Resistance	Mounting Type	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Must Operate Voltage	Coil Current	Termination Style	Release Time	Contact Rating (Current)	Contact Form	Approval Agency	Relay Type	Load - Max Switching	Must Release Voltage	Contact Material	Coil Type	Features	Switching Voltage [Max]
SCHNEIDER ELECTRIC RPM22F7	4.43 kOhms	Socketable	120 VAC	55 °C	-40 C	20 ms	96 VAC	27.1 mA	Plug In	20 ms	15 A	DPDT (2 Form C)	CSA EAC UL	General Purpose	420 W 3750 VA	18 VAC	Silver Nickel (AgNi)	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC
SCHNEIDER ELECTRIC RPM22P7	16.27 kOhms	Socketable	230 VAC	55 °C	-40 C	20 ms	184 VAC	14.1 mA	Plug In	20 ms	15 A	DPDT (2 Form C)	CSA EAC UL	General Purpose	420 W 3750 VA	34.5 VAC	Silver Nickel (AgNi)	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC
SCHNEIDER ELECTRIC RPM22FD	13.44 kOhms	Socketable	110 VDC	55 °C	-40 C	20 ms	88 VDC	8.2 mA	Plug In	20 ms	15 A	DPDT (2 Form C)	CSA EAC UL	General Purpose	420 W 3750 VA	11 VDC	Silver Nickel (AgNi)	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC
SCHNEIDER ELECTRIC RPM22ED	2560 Ohms	Socketable	48 VDC	55 °C	-40 C	20 ms	38.4 VDC	18.8 mA	Plug In	20 ms	15 A	DPDT (2 Form C)	CSA EAC UL	General Purpose	420 W 3750 VA	4.8 VDC	Silver Nickel (AgNi)	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC
SCHNEIDER ELECTRIC RPM22B7	177 Ohms	Socketable	24 VAC	55 °C	-40 C	20 ms	19.2 VAC	135.6 mA	Plug In	20 ms	15 A	DPDT (2 Form C)	CSA EAC UL	General Purpose	420 W 3750 VA	3.6 VAC	Silver Nickel (AgNi)	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC
SCHNEIDER ELECTRIC RPM22BD	640 Ohms	Socketable	24 VDC	55 °C	-40 C	20 ms	19.2 VDC	0.0375 A	Plug In	20 ms	15 A	DPDT (2 Form C)	CSA EAC UL	General Purpose	420 W 3750 VA	2.4 VDC	Silver Nickel (AgNi)	Non Latching	Lighted Indicator Test Button	28 VDC 250 VAC
