A 20-LC Series
Manufacturer: Assmann WSW Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

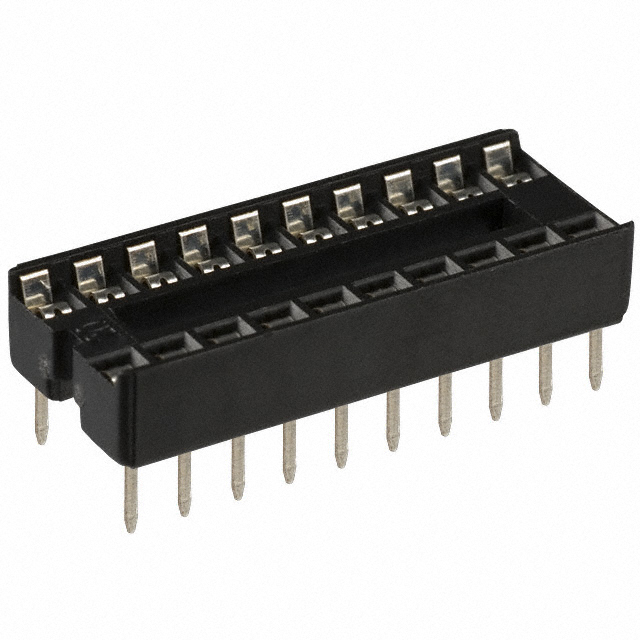

CONN IC DIP SOCKET 20POS TIN
| Part | Contact Material - Mating | Contact Material - Post | Pitch - Post | Row Spacing | Type | Features | Contact Finish - Mating | Contact Finish - Post | Housing Material | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Grid Rows | Grid Columns | Number of Positions or Pins (Grid) | Pitch - Mating | Termination Post Length | Current Rating | Contact Resistance | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Phosphor Bronze | Phosphor Bronze | 0.1 in | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Open Frame | Tin | Tin | PBT Polybutylene Terephthalate | Solder | -55 °C | 85 °C | Through Hole | 2 | 10 | 20 | 0.1 in | 0.124 in | 1 A | 30 mOhm | UL94 V-0 |
