ESDxx Series

Catalog

ESD PROTECTION DIODES / TVS DIODES ESD DIODE, SOT-23, 150C, 200W, BIDIR

Part	Bidirectional Channels	Type	Mounting Type	Capacitance @ Frequency	Applications	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Package / Case	Voltage - Reverse Standoff (Typ)	Package / Case	Bidirectional Channels [custom]	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Max]	Voltage - Clamping (Max) @ Ipp
Diotec Semiconductor ESDB12C	2	Zener	Surface Mount	1 MHz 19 pF	CAN	200 W	150 °C	-55 °C	14.2 V	5 A	37 V	SOT-23-3 (TO-236)	SC-59 SOT-23-3 TO-236-3	12 V

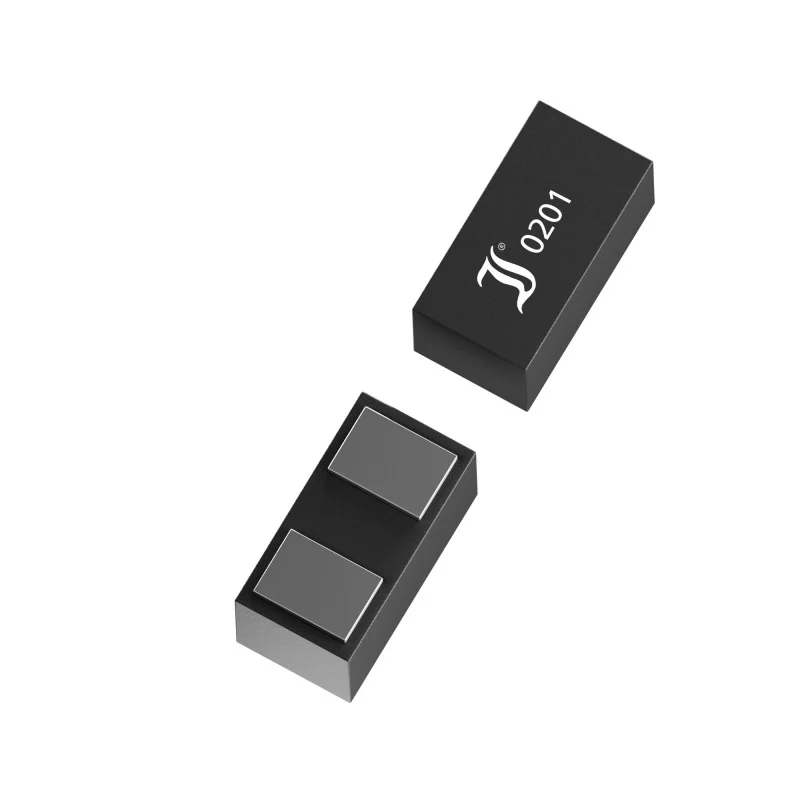

Diotec Semiconductor ESD05B1Z		Zener	Surface Mount	25 pF	General Purpose	170 W	125 °C	-50 °C	5.8 V	17 A	11 V	0201	0201	5 V	0603 Metric	1
Diotec Semiconductor ESD5Z6V0		Zener	Surface Mount	70 pF	General Purpose	154 W	150 °C	-50 °C	6.8 V	5 A	12.4 V	SOD-523	SC-79 SOD-523	6 V			1
Diotec Semiconductor ESDB712	2	Zener	Surface Mount	1 MHz 60 pF	General Purpose	400 W	150 °C	-55 °C	7.8 V	17 A	15 V 26 V	SOT-23-3 (TO-236)	SC-59 SOT-23-3 TO-236-3	7 V 12 V				13 V
Diotec Semiconductor ESDB712A	2	Zener	Surface Mount	100 pF	General Purpose	275 W	125 °C	-55 ░C	7.5 V	11.5 A		SOT-23-3 (TO-236)	SC-59 SOT-23-3 TO-236-3	7 V 12 V				12.8 V	23 V 30 V
