LHB-03 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 3POS 3.96MM

Part	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Fastening Type	Shrouding	Connector Type	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Type	Current Rating (Amps)	Contact Material	Overall Contact Length	Overall Contact Length	Number of Rows	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Shape	Termination	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Style	Contact Length - Post [x]

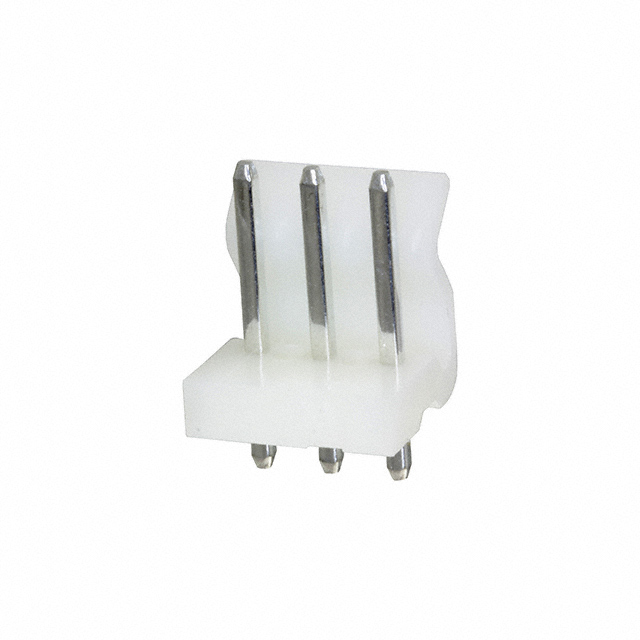

Adam Tech LHB-03-SA1	3.96 mm	0.156 in	85 °C	-25 °C	Tin	Friction Lock	Shrouded - 1 Wall	Header	250 VAC	12.8 mm	0.504 "	White	Male Pin	5 A	Brass	17.53 mm	0.69 in	1	UL94 V-2	3.68 mm	0.145 in	Square	Solder	All	Nylon 6/6 Polyamide (PA66)	1.04 mm	0.041 in	Through Hole	Board to Cable/Wire

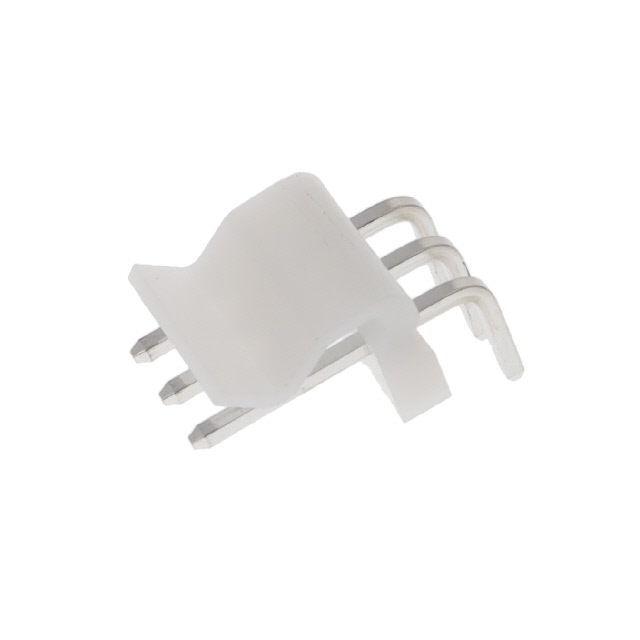

Adam Tech LHB-03-SB1	3.96 mm	0.156 in	85 °C	-25 °C	Tin	Friction Lock	Shrouded - 1 Wall	Header	250 VAC			White	Male Pin	5 A	Brass			1	UL94 V-2	3.4 mm		Square	Solder	All	Nylon 6/6 Polyamide (PA66)	11.3 mm	0.445 in	Right Angle Through Hole	Board to Cable/Wire	0.134 "
