RV10 Series

Catalog

RING TONGUE TERMINAL, M10, 3/8", 10 AWG, HIGHLAND SERIES, YELLOW

Part	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Features	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Thickness	Thickness	Termination	Insulation	Contact Material	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Contact Finish	Color	Mounting Type	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]
3M Electronic Specialty RV10-38Q	Vinyl	6.35 mm	0.25 in	Butted Seam	10 AWG	12 AWG	Circular	0.04 in	1.02 mm	Crimp	Insulated	Copper ETP	0.375 Stud	0.53 in	13.46 mm	Tin	Yellow	Free Hanging (In-Line)	32 mm	1.26 "
3M Electronic Specialty RV10-10L	Vinyl	6.35 mm	0.25 in	Butted Seam	10 AWG	12 AWG	Circular	0.04 in	1.02 mm	Crimp	Insulated	Copper ETP	10 Stud			Tin	Yellow	Free Hanging (In-Line)	26.16 mm	1.03 in	9.65 mm	0.38 in
3M Electronic Specialty RV10-14L	Vinyl	6.35 mm	0.25 in	Butted Seam	10 AWG	12 AWG	Circular	0.04 in	1.02 mm	Crimp	Insulated	Copper ETP	0.25 Stud	0.53 in	13.46 mm	Tin	Yellow	Free Hanging (In-Line)	32 mm	1.26 "

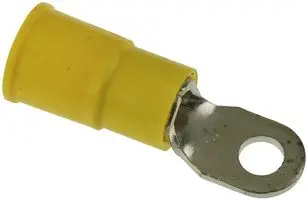

3M Electronic Specialty RV10-6Q	Vinyl	6.35 mm	0.25 in	Butted Seam	10 AWG	12 AWG	Circular	0.04 in	1.02 mm	Crimp	Insulated	Copper ETP	6 Stud			Tin	Yellow	Free Hanging (In-Line)	26.16 mm	1.03 in	9.65 mm	0.38 in
