8501XO Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

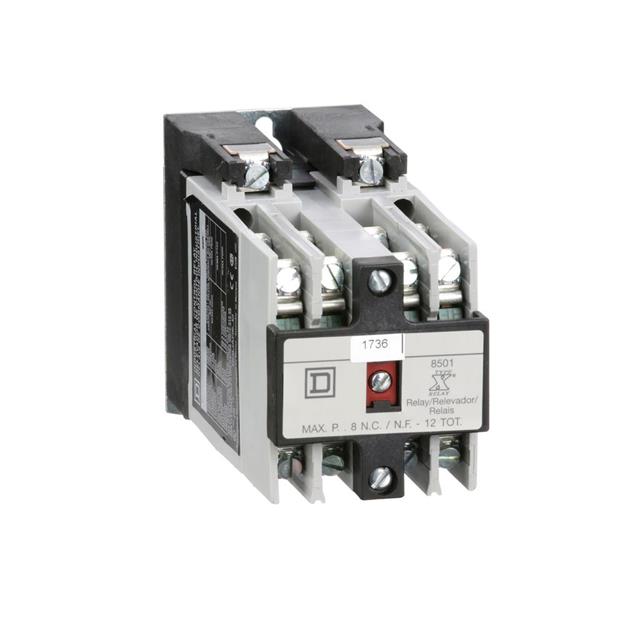

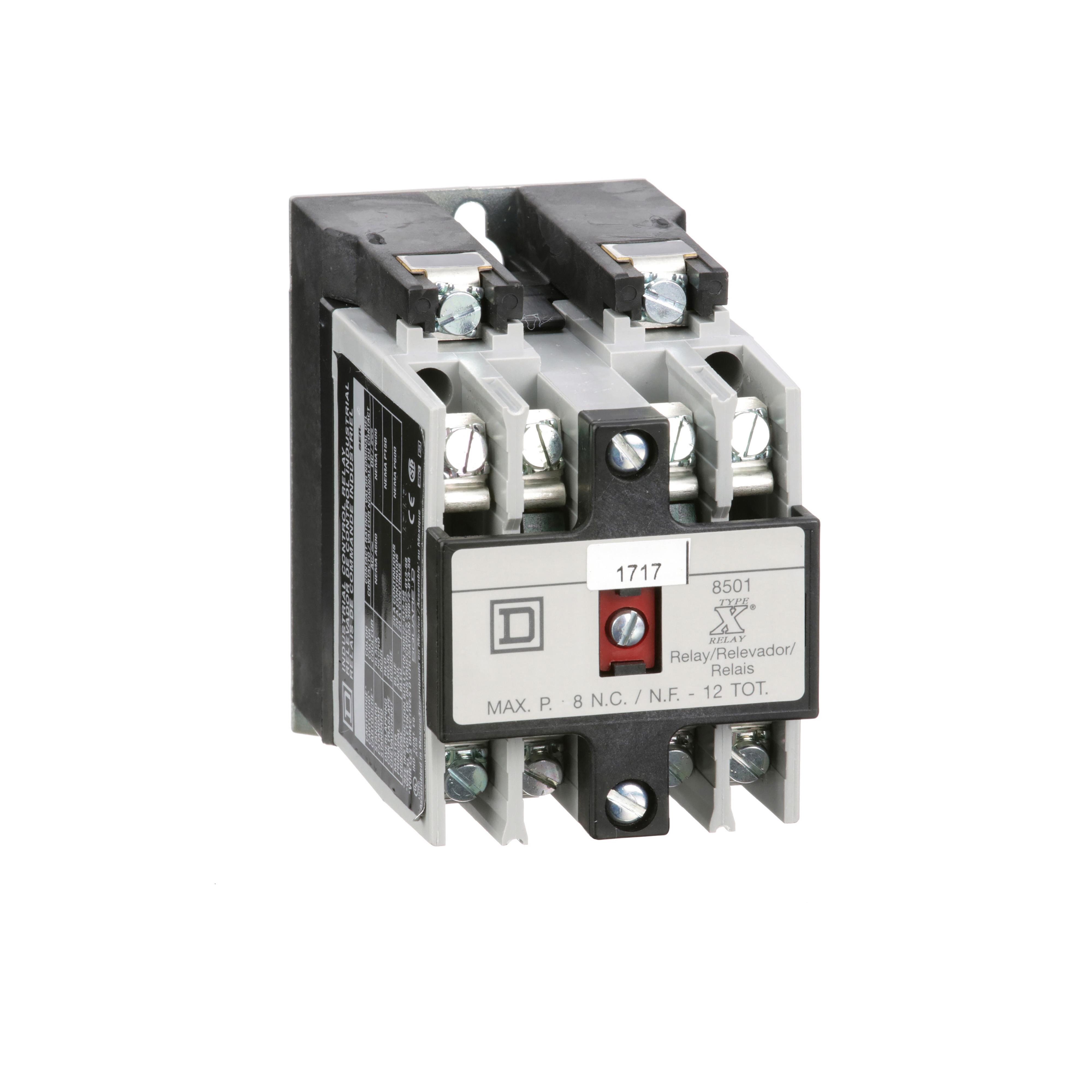

NEMA CONTROL RELAY, TYPE X, MACH
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Operate Time | Coil Type | Mounting Type | Release Time | Coil Voltage | Contact Form | Relay Type | Contact Rating (Current) | Switching Voltage [Max] | Termination Style | Load - Max Switching | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CE CSA UL | 15 ms | Non Latching | Chassis Mount | 16 ms | 120 VAC | DPST-NO/NC (1 Form A 1 Form B) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | |

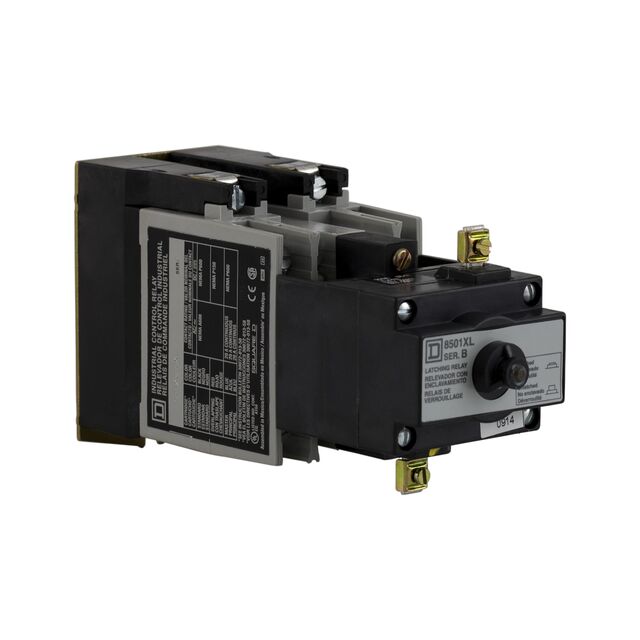

 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Latching Single Coil | Chassis Mount | 13 ms | 120 VAC | 4PST-NO (4 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CE CSA UL | 15 ms | Non Latching | Chassis Mount | 16 ms | 240 VAC/DC | 8PST-NO (8 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Non Latching | Socketable | 16 ms | 120 VAC | 3PST-NO (3 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | 102 VAC |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Non Latching | Chassis Mount | 16 ms | 24 VAC | DPST-NO (2 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Latching Single Coil | Chassis Mount | 13 ms | 120 VAC | DPST-NO (2 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Non Latching | Chassis Mount | 16 ms | 240 VAC/DC | DPST-NO (2 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | 204 VAC |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Latching Single Coil | Chassis Mount | 13 ms | 120 VAC | 6PST-NO (6 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | |
 SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Non Latching | Chassis Mount | 16 ms | 120 VAC | DPST-NO (2 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | 102 VAC |
SCHNEIDER ELECTRIC | 71 °C | -40 C | CSA UL | 15 ms | Non Latching | Socketable | 16 ms | 277 VAC | DPST-NO (2 Form A) | General Purpose | 10 A | 600 VAC | Screw Terminal | 6000 VA | 235.45 VAC |
