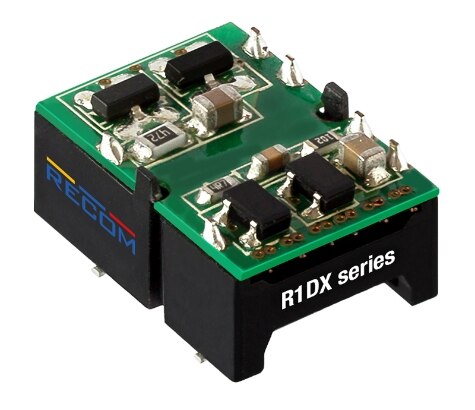

R1DX Series

Catalog

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, MODULE, 1:1, 1 W, 2 OUTPUT, 15 V

Part	Voltage - Isolation	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Voltage - Input (Max) [Max]	Applications	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Type	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Recom Power R1DX-0515-TRAY	1000 V	OCP	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-15 V	-40 C	95 °C	2	33 mA	33 mA	15 V	4.5 V	Isolated Module	80 %	10-SMD Module 6 Leads
Recom Power R1DX-0505/H-TRAY	3000 V	OCP	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-5 V	-40 C	95 °C	2			5 V	4.5 V	Isolated Module	78 %	10-SMD Module 6 Leads	100 mA	100 mA
Recom Power R1DX-0509/H-TRAY	3000 V	OCP	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-9 V	-40 C	95 °C	2	56 mA		9 V	4.5 V	Isolated Module	78 %	10-SMD Module 6 Leads
Recom Power R1DX-0509-TRAY	1000 V	OCP	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-9 V	-40 C	95 °C	2	56 mA		9 V	4.5 V	Isolated Module	78 %	10-SMD Module 6 Leads
Recom Power R1DX-0509/H-R	3000 V		0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-9 V	-40 C	95 °C	2	56 mA		9 V	4.5 V	Isolated Module	78 %	10-SMD 6 Leads
Recom Power R1DX-0505-R	1000 V		0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-5 V	-40 C	95 °C	2			5 V	4.5 V	Isolated Module	78 %	10-SMD 6 Leads	100 mA	100 mA
Recom Power R1DX-0515-R	1000 V		0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-15 V	-40 C	95 °C	2	33 mA	33 mA	15 V	4.5 V	Isolated Module	80 %	10-SMD 6 Leads
Recom Power R1DX-0515/H-R	3000 V		0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-15 V	-40 C	95 °C	2	33 mA	33 mA	15 V	4.5 V	Isolated Module	80 %	10-SMD 6 Leads
Recom Power R1DX-0512-TRAY	1000 V	OCP	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-12 V	-40 C	95 °C	2			12 V	4.5 V	Isolated Module	80 %	10-SMD Module 6 Leads			42 mA
Recom Power R1DX-0512-R	1000 V		0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	Surface Mount	5.5 V	ITE (Commercial)	-12 V	-40 C	95 °C	2			12 V	4.5 V	Isolated Module	80 %	10-SMD 6 Leads			42 mA
