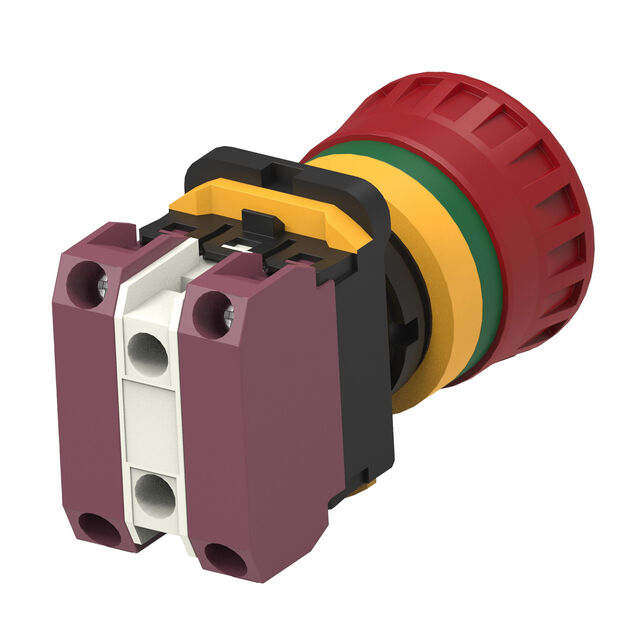

PBES22 Series

Catalog

PUSHBUTTON SWITCHES PBES22 40 INCA 6V AC/DC 6.3V 1W 000 NC

Part	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Reset Operation	Features	Panel Cutout Dimensions [diameter]	Ingress Protection	Illumination Voltage (Nominal)	Circuit	Switch Function	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC
TE Connectivity AMP Connectors 2416049-5	24 V	8 A 10 A	Screw Terminal	Pull Twist	Push-Lock Turn-Reset	22.3 mm	IP65 - Dust Tight Water Resistant	6 VAC/DC	SPST-NC	On-Off	Panel Mount Front	-25 °C	70 °C	120 V
TE Connectivity AMP Connectors 1-2416049-7	24 V	8 A 10 A	Screw Terminal	Pull Twist	Push-Lock Turn-Reset	22.3 mm	IP65 - Dust Tight Water Resistant	110 VDC	DPST-NC	On-Off	Panel Mount Front	-25 °C	70 °C	120 V
TE Connectivity AMP Connectors 2416049-4	24 V	8 A 10 A	Screw Terminal	Pull Twist	Push-Lock Turn-Reset	22.3 mm	IP65 - Dust Tight Water Resistant	24 V	SPST-NC	On-Off	Panel Mount Front	-25 °C	70 °C	120 V
TE Connectivity AMP Connectors 3-2416049-0	24 V	8 A 10 A	Screw Terminal	Pull Twist	Push-Lock Turn-Reset	22.3 mm	IP65 - Dust Tight Water Resistant	12 VDC	DPST-NO/NC	Off-On On-Off	Panel Mount Front	-25 °C	70 °C	120 V
