25092 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

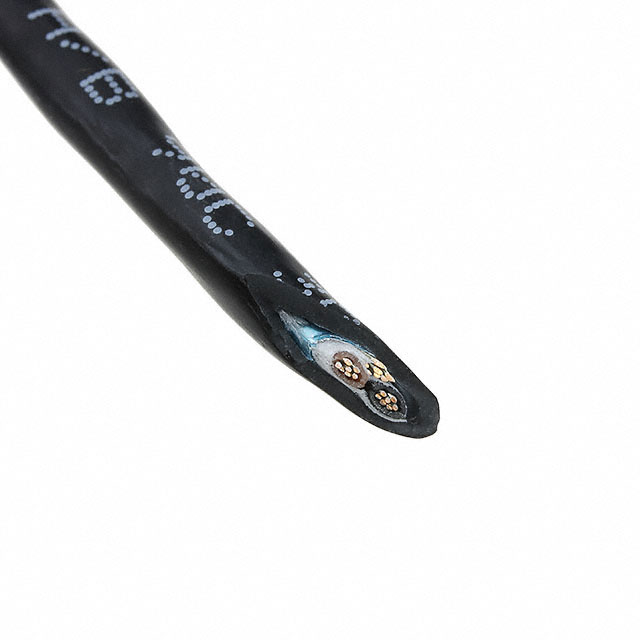

CABLE 2COND 24AWG BLK SHLD 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Wire Gauge | Ratings | Length [x] | Length [x] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Features | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 4.06 mm | 0.16 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | -30 ░C | 90 °C | 300 VDC | 24 AWG | ISO 10993 UL Style 20668 | 100 ft | 30.5 m | 2 | 7 | 32 AWG | Foil | Multi-Conductor | 0.813 mm | 0.032 in | Black | Biological Compatibility Drain Wire Rip Cord | Polyurethane (PU) |
