Kilovac LEV200 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE SPST 500A 48V

Part	Termination Style	Relay Type	Contact Form	Coil Voltage	Operate Time	Coil Current	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Release Time	Coil Type	Features	Switching Voltage [Max]	Coil Resistance
TE Connectivity AMP Connectors LEV200A6NAF	Stud	General Purpose	SPST-NO (DM) (1 Form X)	48 VDC	25 ms	331 mA	38 VDC	2 VDC	500 A	Sealed - Hermetically	85 °C	-40 C	Chassis Mount	12 ms	Non Latching
TE Connectivity AMP Connectors LEV200H5ANF	Stud Wire Leads		SPST-NO (DM) (1 Form X)	24 VDC			19 VDC	5 VDC	500 A		85 °C	-40 C	Chassis Mount			Sealed - Hermetically	900 VDC

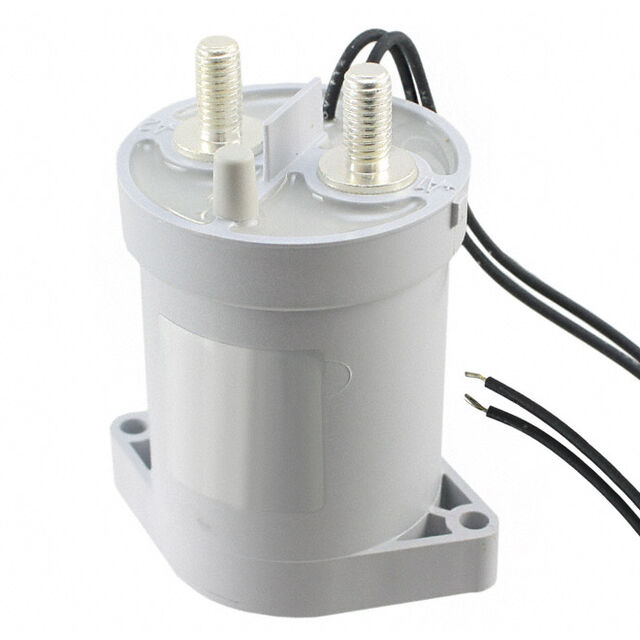

TE Connectivity AMP Connectors LEV200A4ANA	Stud Wire Leads		SPST-NO (DM) (1 Form X)	12 VDC	25 ms	1.1 A	9 VDC	2 VDC	500 A		85 °C	-40 C	Chassis Mount	12 ms		Sealed - Hermetically	900 VDC	11 Ohms
TE Connectivity AMP Connectors 7-1618387-1
TE Connectivity AMP Connectors LEV200H4ANA	Stud Wire Leads		SPST-NO (DM) (1 Form X)	12 VDC	25 ms	1.1 A	9 VDC	2 VDC	500 A		85 °C	-40 C	Chassis Mount	12 ms		Sealed - Hermetically	900 VDC	11 Ohms
TE Connectivity AMP Connectors LEV200A4NAF	Stud		SPST-NO (DM) (1 Form X)	12 VDC	25 ms	1.1 A	9 VDC	2 VDC	500 A		85 °C	-40 C	Chassis Mount	12 ms		Sealed - Hermetically	900 VDC	11 Ohms
TE Connectivity AMP Connectors 5-1618387-7
TE Connectivity AMP Connectors 5-1618388-8	Stud		SPST-NO (DM) (1 Form X)	48 VDC			38 VDC	7 VDC	500 A		85 °C	-40 C	Chassis Mount			Sealed - Hermetically	900 VDC
TE Connectivity AMP Connectors 3-1618389-2	Wire Leads	General Purpose	SPST-NO (DM) (1 Form X)	12 VDC	25 ms	1 mA	9 VDC	2 VDC	500 A	Sealed - Hermetically	85 °C	-40 C	Panel Mount	7 ms	Non Latching
TE Connectivity AMP Connectors 5-1618388-7
