796741 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

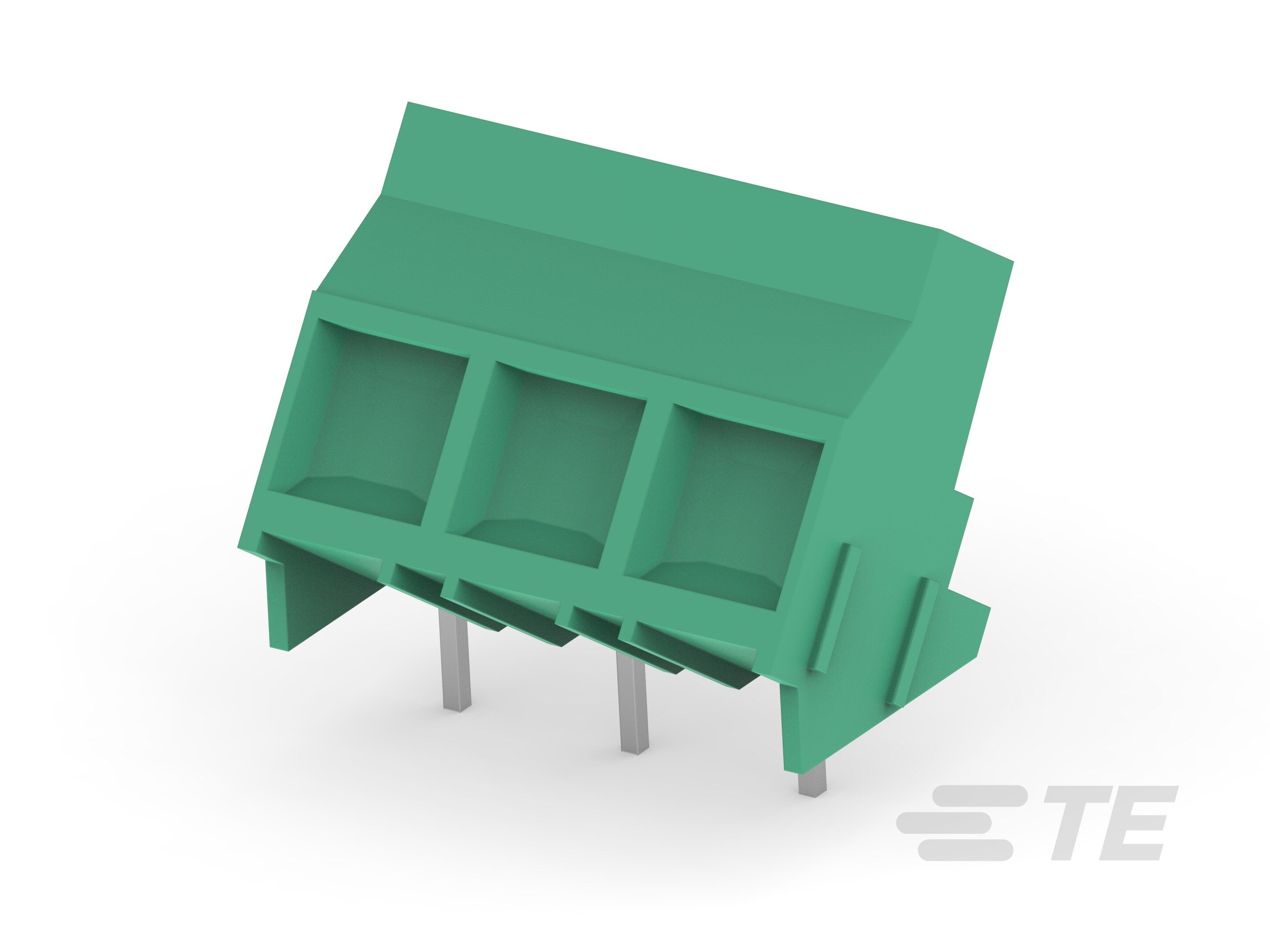

TERM BLOCK 3POS 35DEG 9.53MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Thread | Screw Material - Plating | Clamp Material - Plating | Mounting Type | Current | Number of Levels | Features | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Pitch | Pitch | Positions Per Level | Voltage | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass - Nickel Plated | Brass - Nickel Plated | Through Hole | 30 A | 1 | Interlocking (Side) | Screw - Rising Cage Clamp | 24 AWG | 10 AWG | 35° (145°) Angle with Board | 9.53 mm | 0.375 in | 3 | 600 V | Green |
