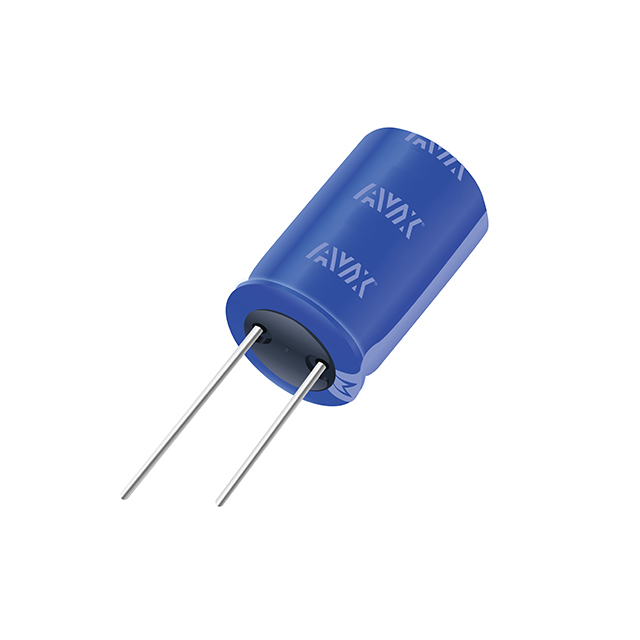

SCC-E Series
Manufacturer: KYOCERA AVX
Beta
⌘K
SUPERCAPACITORS / ULTRACAPACITORS 3V 10F 10X30MM RADIA L LOW ESR
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Voltage - Rated | Mounting Type | Lead Spacing | Lead Spacing | Lifetime @ Temp. | Capacitance | Tolerance [Min] | Tolerance [Max] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 0.394 in | 10 mm | Can Radial | 3 VDC | Through Hole | 0.217 in | 5.5 mm | 1000 Hrs | 10 F | -10 % | 30 % | PC Pins | -40 C | 65 °C | 1.26 in | 32 mm | 50 mOhm |
