AWCS Series

Catalog

RF INDUCTORS - SMD CHILISIN RF INDUCTOR WIRE WOUND-STD

...

Part	Inductance	DC Resistance (DCR)	Shielding	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Ratings	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Q @ Freq	Frequency - Self Resonant	Mounting Type	Supplier Device Package	Package / Case	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Pulse Electronics AWCS001207079N0H00	9 nH	100 mOhm	Unshielded	250 MHz	1.19 mm	0.025 in	0.047 in	0.64 mm	3 %	AEC-Q200	Ceramic	0.026 in	0.66 mm	0402 (1005 Metric)	Drum Core Wirewound	125 °C	-40 C	0.68 A	22 250 MHz	4.16 GHz	Surface Mount	0402

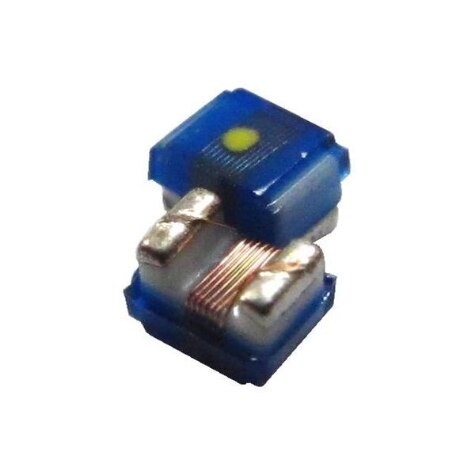

Pulse Electronics AWCS0016100823NH00	23 nH		Unshielded	250 MHz	1.6 mm	0.04 in	0.063 "	1.02 mm	3 %		Ceramic		1.02 mm	0603	Drum Core Wirewound	125 °C	-40 C	700 mA	38 250 MHz	2.85 GHz	Surface Mount		1608 Metric	0.04 in	190 mOhm
Pulse Electronics AWCS00161008R12J00	120 nH		Unshielded	150 MHz	1.6 mm	0.04 in	0.063 "	1.02 mm	5 %	AEC-Q200	Ceramic		1.02 mm	0603	Drum Core Wirewound	125 °C	-40 C	0.3 A	32 150 MHz	1.3 GHz	Surface Mount		1608 Metric	0.04 in	750 mOhm
Pulse Electronics AWCS00372822R68G00	0.68 µH	1.58 Ohm	Unshielded	35 MHz	3.7 mm	0.11 "	0.146 in		2 %	AEC-Q200	Ceramic	0.087 in		1210	Drum Core Wirewound	125 °C	-40 C	430 mA	45 150 MHz	450 MHz	Surface Mount	1210	3225 Metric			2.8 mm	2.2 mm
Pulse Electronics AWCS00372822R39G00	390 nH		Unshielded	50 MHz	3.7 mm	0.11 "	0.146 in		2 %	AEC-Q200	Ceramic	0.087 in		1210	Drum Core Wirewound	125 °C	-40 C	0.53 A	45 150 MHz	600 MHz	Surface Mount	1210	3225 Metric		750 mOhm	2.8 mm	2.2 mm
Pulse Electronics AWCS0012070718NG00	18 nH		Unshielded	250 MHz	1.19 mm	0.025 in	0.047 in	0.64 mm	2 %		Ceramic	0.026 in	0.66 mm	0402 (1005 Metric)	Drum Core Wirewound	125 °C	-40 C	0.42 A		3.1 GHz	Surface Mount	0402			230 mOhm			25	250 MHz
Pulse Electronics AWCS00292821R12G00	120 nH		Unshielded	25 MHz	2.92 mm	0.11 "	0.115 "	2.79 mm	2 %	AEC-Q200	Ceramic	0.083 in		1008	Drum Core Wirewound	125 °C	-40 C	650 mA	60 350 MHz	950 MHz	Surface Mount	1008	2520 Metric		630 mOhm		2.1 mm
Pulse Electronics AWCS0016100830NH00	30 nH	144 mOhm	Unshielded	250 MHz	1.6 mm	0.04 in	0.063 "	1.02 mm	3 %		Ceramic		1.02 mm	0603	Drum Core Wirewound	125 °C	-40 C	600 mA		2.25 GHz	Surface Mount		1608 Metric	0.04 in				37		250 MHz
Pulse Electronics AWCS0012070733NJ00	33 nH		Unshielded	250 MHz	1.19 mm	0.025 in	0.047 in	0.64 mm	5 %	AEC-Q200	Ceramic	0.026 in	0.66 mm	0402 (1005 Metric)	Drum Core Wirewound	125 °C	-40 C	400 mA		2.35 GHz	Surface Mount	0402			400 mOhm				250 MHz		24
Pulse Electronics AWCS00292821R62K00	620 nH		Unshielded	25 MHz	2.92 mm	0.11 "	0.115 "	2.79 mm	10 %	AEC-Q200	Ceramic	0.083 in		1008	Drum Core Wirewound	125 °C	-40 C	0.3 A	45 100 MHz	375 MHz	Surface Mount	1008	2520 Metric		1.4 Ohm		2.1 mm
