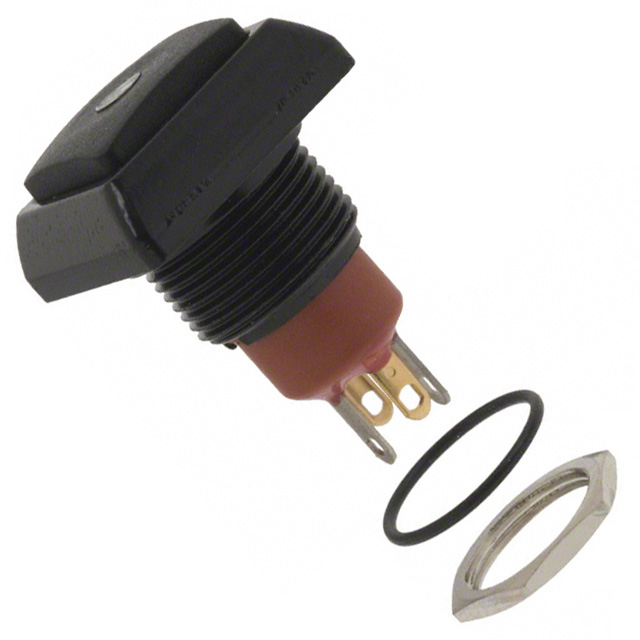

IPC3SA Series
Manufacturer: APEM Inc.
Beta
⌘K
PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES
| Part | Electrical Life | Illumination Type, Color | Type | Color - Actuator/Cap | Termination Style | Ingress Protection | Switch Function | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Circuit | Illumination Voltage (Nominal) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Actuator Marking | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 500000 Cycles | Green LED | Illuminated Standard | Green | Solder Lug | IP67 - Dust Tight Waterproof | Off-Mom | Button Square | 48 V | 48 V | SPST-NO | 2 VDC | Panel Mount Front | 125 °C | -40 C | 200 mA 500 mA | Tactile Feedback | No Marking | 13.6 mm |
 APEM Inc. | 500000 Cycles | Standard | Blue | Solder Lug | IP67 - Dust Tight Waterproof | Off-Mom | Button Square | 48 V | 48 V | SPST-NO | Panel Mount Front | 125 °C | -40 C | 200 mA 500 mA | Tactile Feedback | No Marking | 13.6 mm | ||
 APEM Inc. | 500000 Cycles | LED Red | Illuminated Standard | Black | Solder Lug | IP67 - Dust Tight Waterproof | Off-Mom | Button Square | 48 V | 48 V | SPST-NO | 2 VDC | Panel Mount Front | 125 °C | -40 C | 200 mA 500 mA | Tactile Feedback | No Marking | 13.6 mm |
