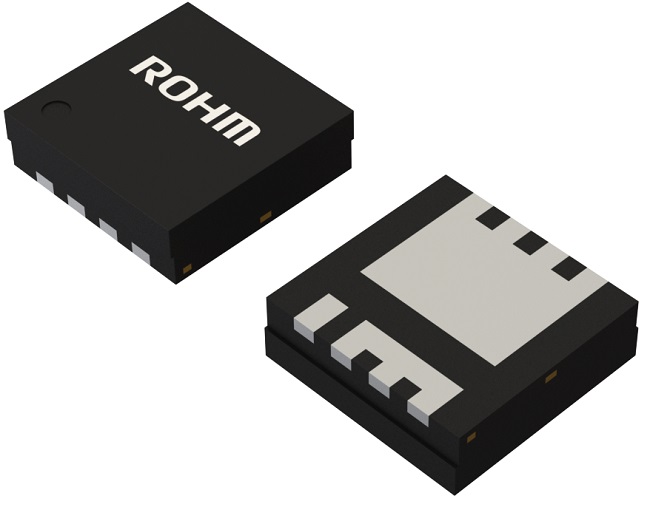

Nch 60V 35A, DFN3333T8LSAB, Power MOSFET for Automotive
Nch 60V 35A, DFN3333T8LSAB, Power MOSFET for Automotive
Nch 60V 35A, DFN3333T8LSAB, Power MOSFET for Automotive
| Part | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Vgs(th) (Max) @ Id | Mounting Type | Grade | Vgs (Max) | Drain to Source Voltage (Vdss) | Operating Temperature | Technology | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Package / Case | FET Type | Gate Charge (Qg) (Max) @ Vgs | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 35 A | 4.5 V 10 V | 2.5 V | Surface Mount | Automotive | 20 V | 60 V | 175 °C | MOSFET (Metal Oxide) | 33 W | 26.4 mOhm | 375 pF | 8-PowerTDFN | N-Channel | 6.8 nC | AEC-Q101 | DFN3333T8LSAB |
